Circuit Diagram

(M/T)

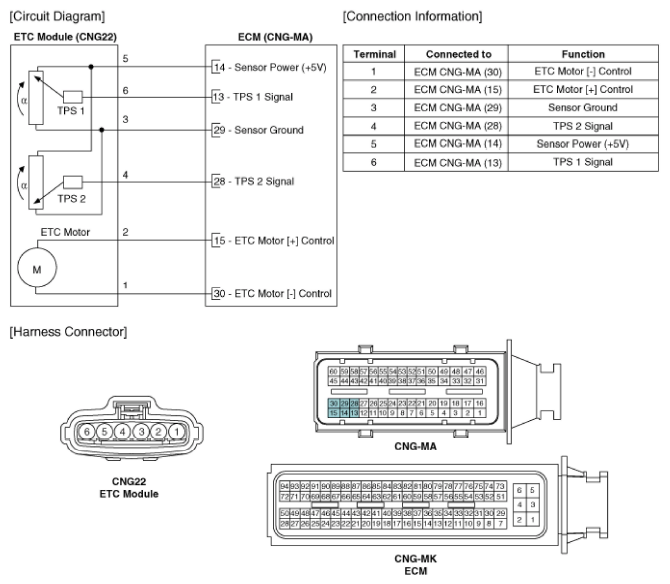

Fig 1: Electronic Throttle Control Circuit Diagram (M/T)
G11793817Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

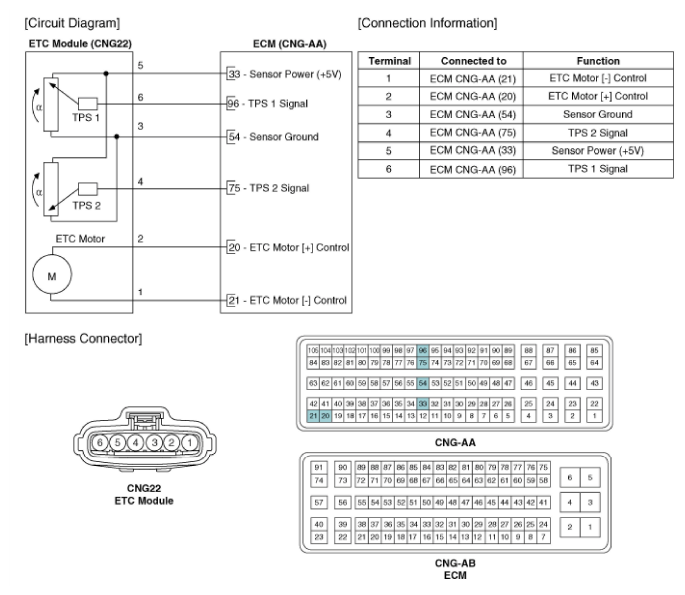

Fig 2: Electronic Throttle Control Circuit Diagram (A/T)
G11793818Courtesy of KIA MOTORS AMERICA, INC.
