Circuit Diagram

(M/T)

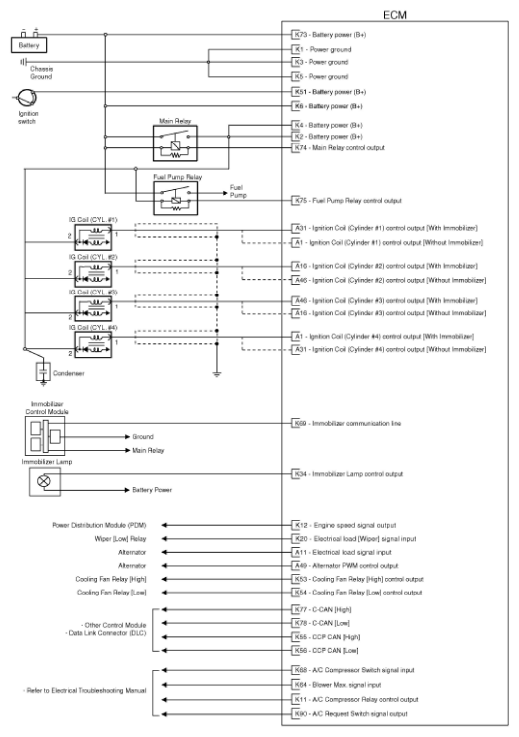

Fig 1: ECM Circuit Diagram (M/T; 1 Of 4)

G11793801

Courtesy of KIA MOTORS AMERICA, INC.

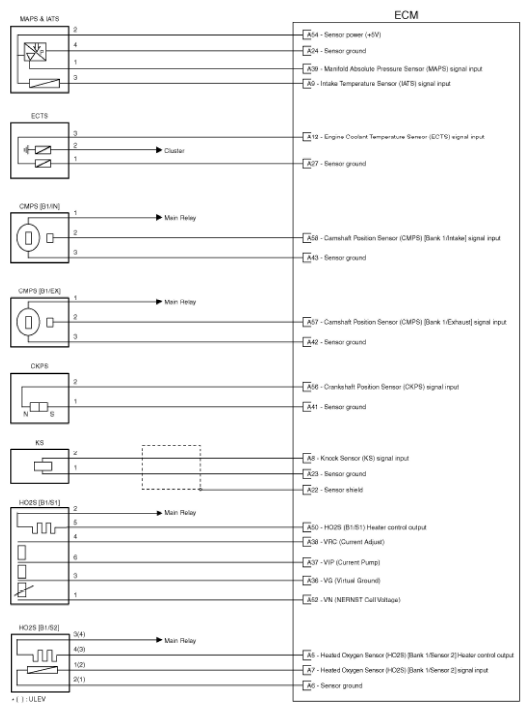

Fig 2: ECM Circuit Diagram (M/T; 2 Of 4)

G11793802

Courtesy of KIA MOTORS AMERICA, INC.

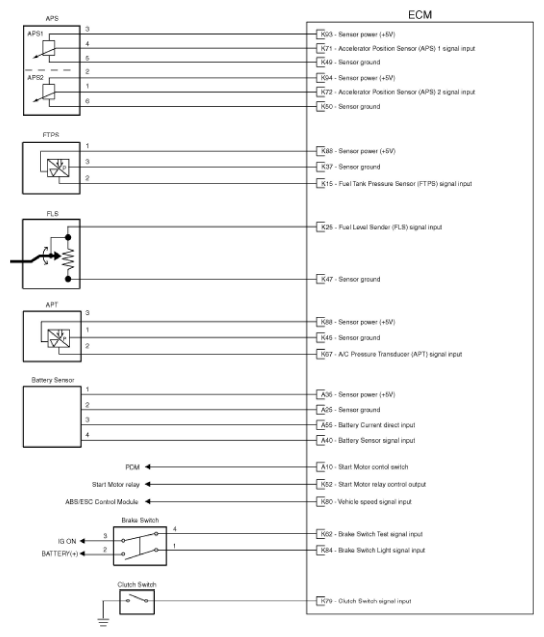

Fig 3: ECM Circuit Diagram (M/T; 3 Of 4)

G11793803

Courtesy of KIA MOTORS AMERICA, INC.

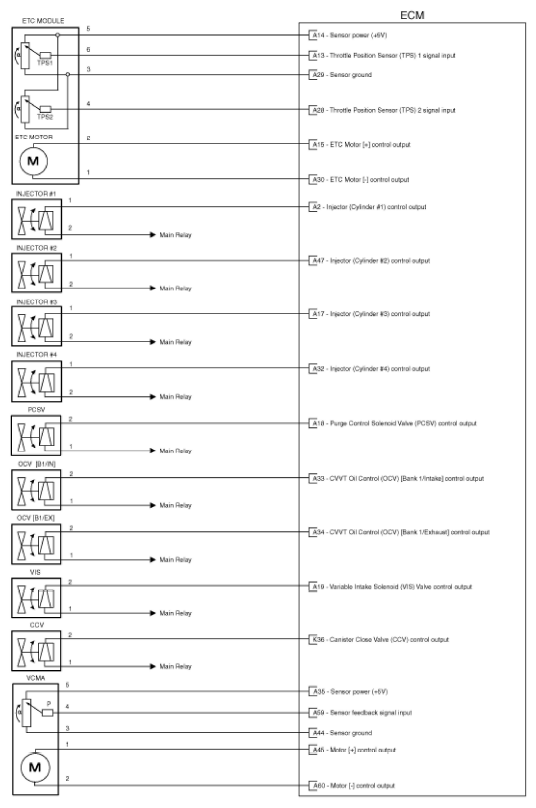

Fig 4: ECM Circuit Diagram (M/T; 4 Of 4)

G11793804

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

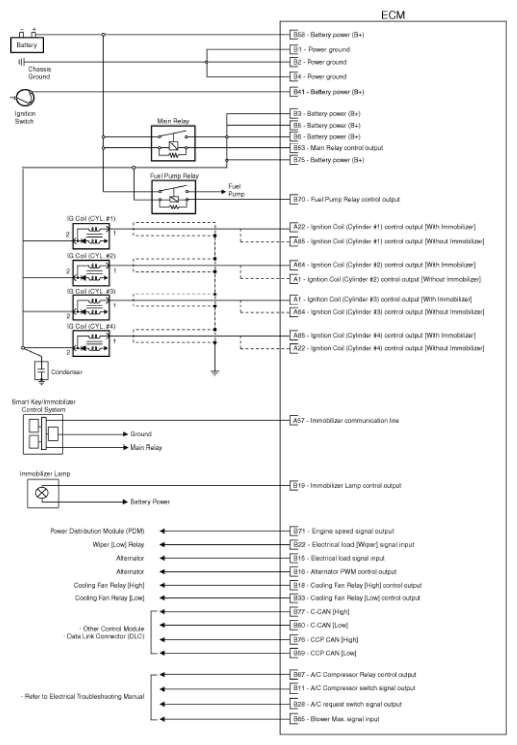

Fig 5: ECM Circuit Diagram (A/T; 1 Of 4)

G11793805

Courtesy of KIA MOTORS AMERICA, INC.

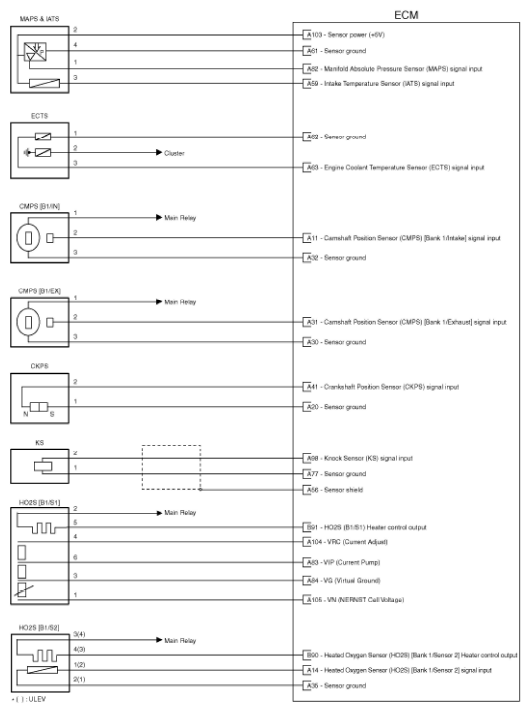

Fig 6: ECM Circuit Diagram (A/T; 2 Of 4)

G11793806

Courtesy of KIA MOTORS AMERICA, INC.

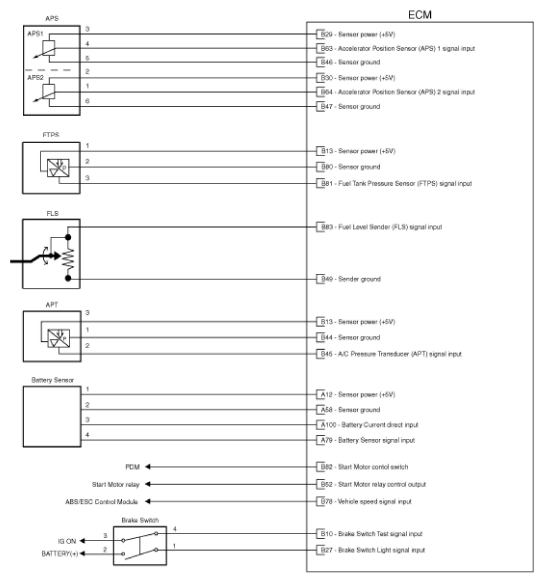

Fig 7: ECM Circuit Diagram (A/T; 3 Of 4)

G11793807

Courtesy of KIA MOTORS AMERICA, INC.

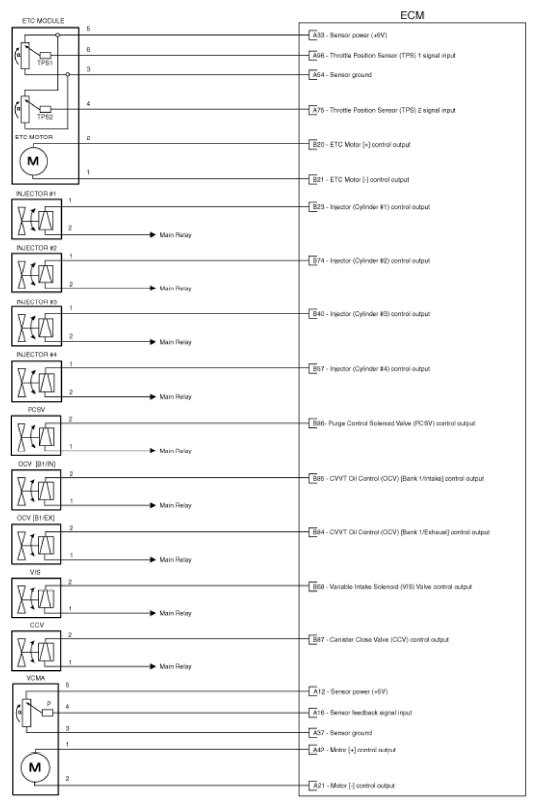

Fig 8: ECM Circuit Diagram (A/T; 4 Of 4)

G11793808

Courtesy of KIA MOTORS AMERICA, INC.
