Circuit Diagram

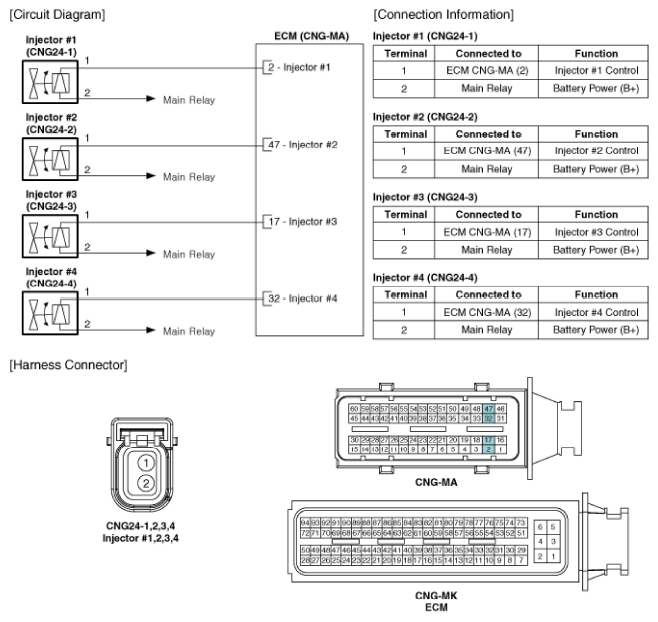

(M/T)

Fig 1: Injector Circuit Diagram (M/T)
G11793877Courtesy of KIA MOTORS AMERICA, INC.

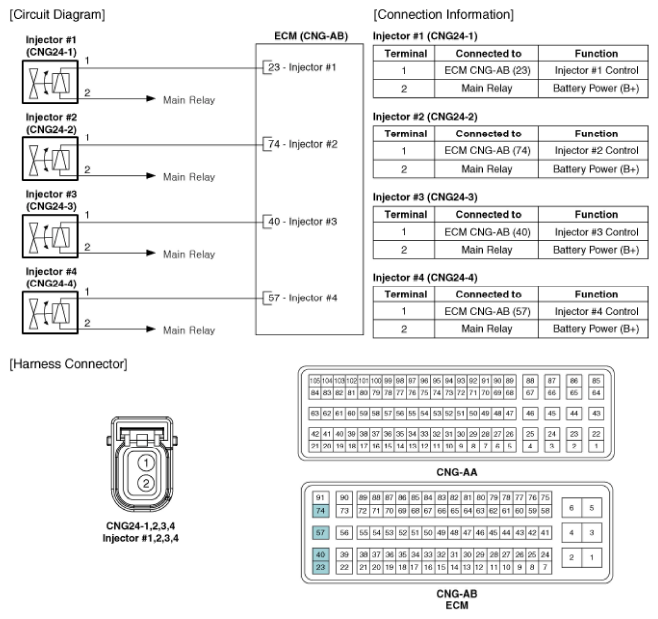

(A/T)

Fig 2: Injector Circuit Diagram (A/T)
G11793878Courtesy of KIA MOTORS AMERICA, INC.
