Circuit Diagram

(M/T)

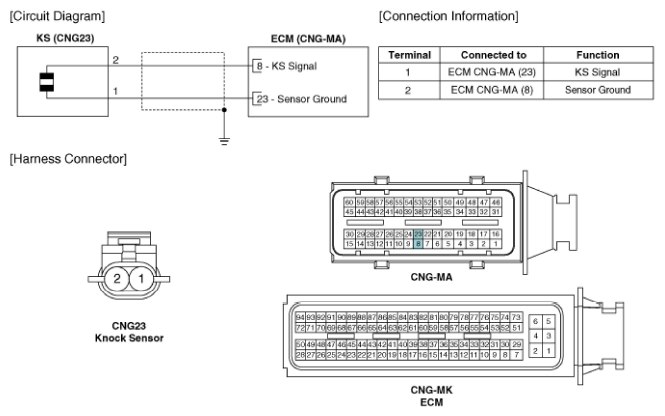

Fig 1: Knock Sensor (KS) Circuit Diagram (M/T)
G11793847Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

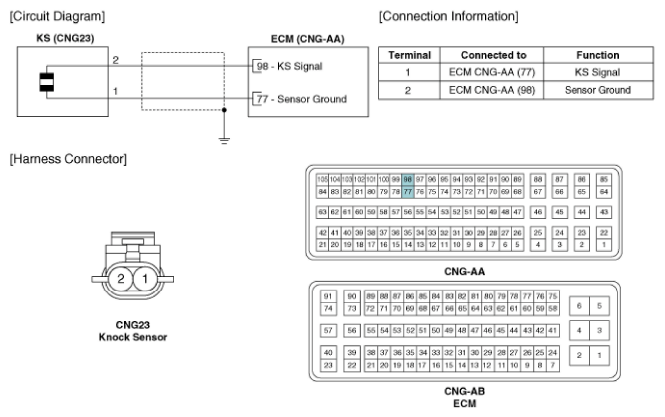

Fig 2: Knock Sensor (KS) Circuit Diagram (A/T)
G11793848Courtesy of KIA MOTORS AMERICA, INC.
