Components Location

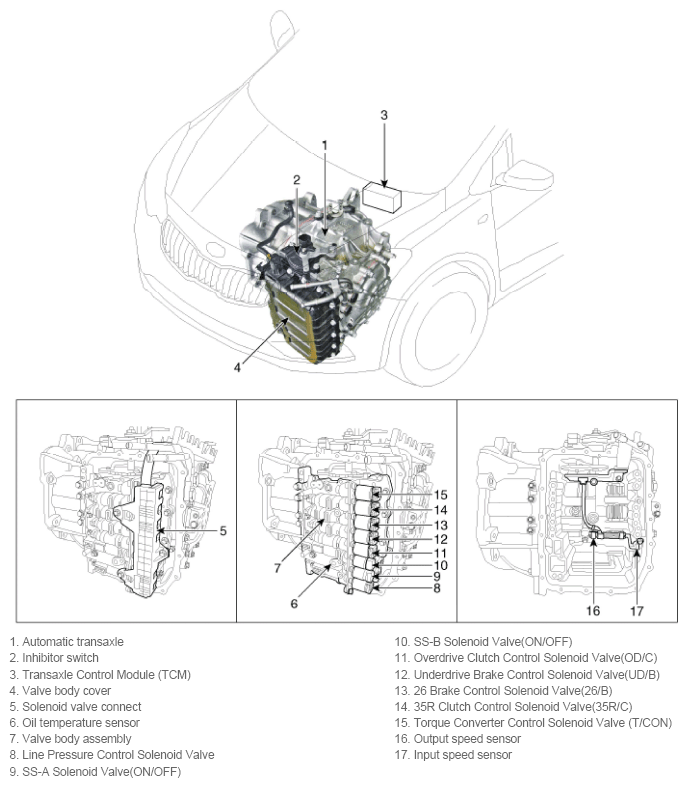

Fig 1: TCM Components Location (1 Of 2)
G11794088Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: TCM Components Location (2 Of 2)
G11794089Courtesy of KIA MOTORS AMERICA, INC.
