Repair Procedures: Installation

Install in the reverse order of removal.
NOTE: The existing valve body cover gasket (A) must be replaced with a new one. (Do not reuse it.)

Fig 1: Locate Valve Body Cover Gasket
Courtesy of KIA MOTORS AMERICA, INC.
Perform the procedures below after installing.
1. Refill the automatic transaxle with fluid.
  (Refer to Hydraulic System - "FLUID ")
2. Clear the diagnostic trouble codes (DTC) using the KDS/GDS. Disconnecting the battery negative terminal will not clear the DTCs. Clear DTCs using the KDS/GDS at all times.
3. Reset the automatic transaxle adaptive values using the KDS/GDS.

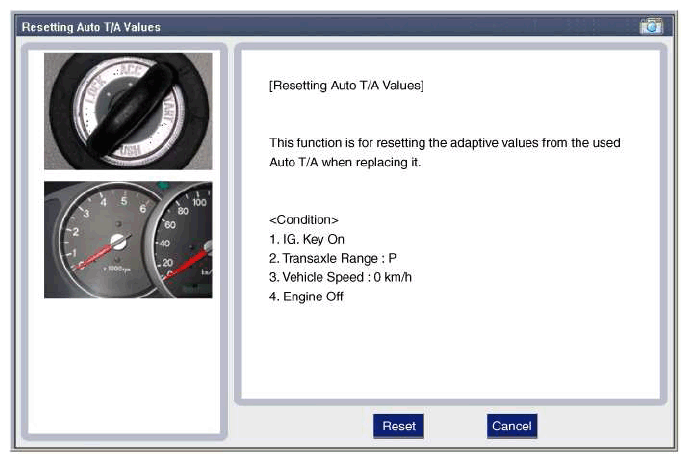

  Fig 2: Screen Display - Reset Automatic Transaxle Adaptive Values
  Courtesy of KIA MOTORS AMERICA, INC.
4. Perform the TCM adaptive values learning procedure.
  (Refer to Automatic Transaxle Control System - "ADJUSTMENT ")
5. After installing, check for leakage of coolant or fluid from hose connection during engine start.
