Forte LX, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 1.8L
>>
Output Speed Sensor
>>
Troubleshooting
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform

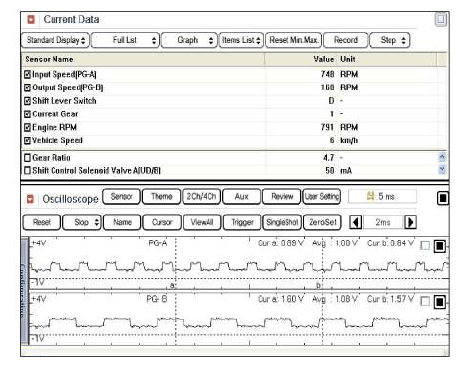

Fig 1: Screen Display - Input/Output Speed Sensor At Low Speed
Courtesy of KIA MOTORS AMERICA, INC.

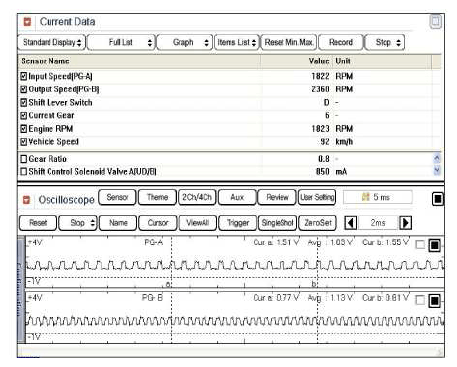

Fig 2: Screen Display - Input/Output Speed Sensor At High Speed
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
