Components And Components Location: Component

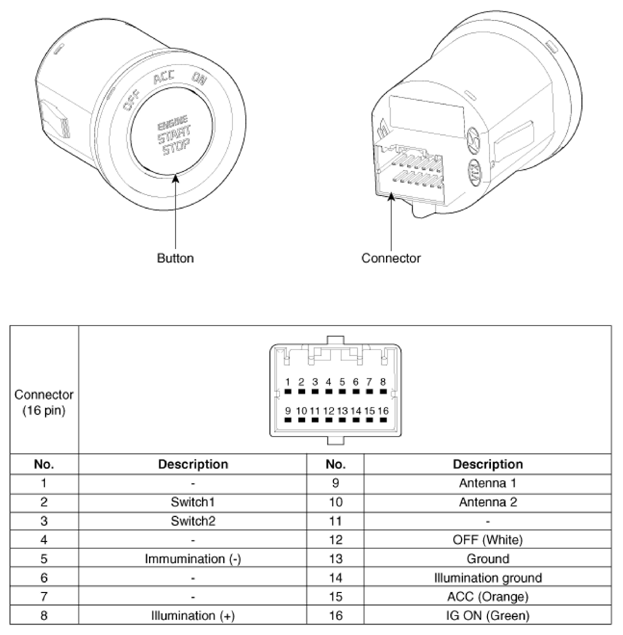

Fig 1: Start/Stop Button Components Location

G11792625

Courtesy of KIA MOTORS AMERICA, INC.
