Circuit Diagram

(M/T)

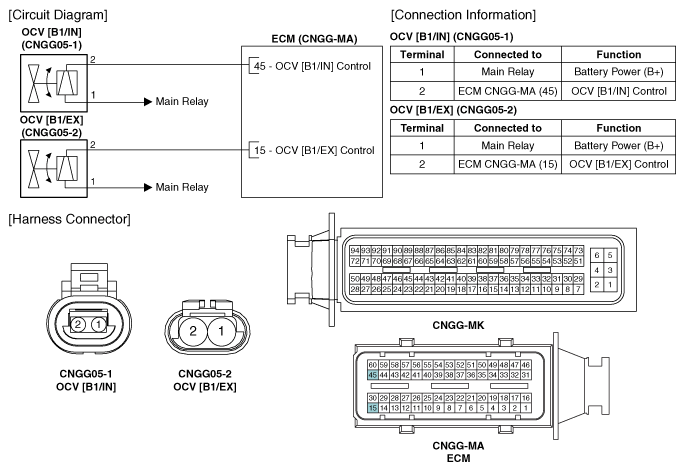

Fig 1: Continuous Variable Valve Timing Oil Control Valve Circuit Diagram (M/T)

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

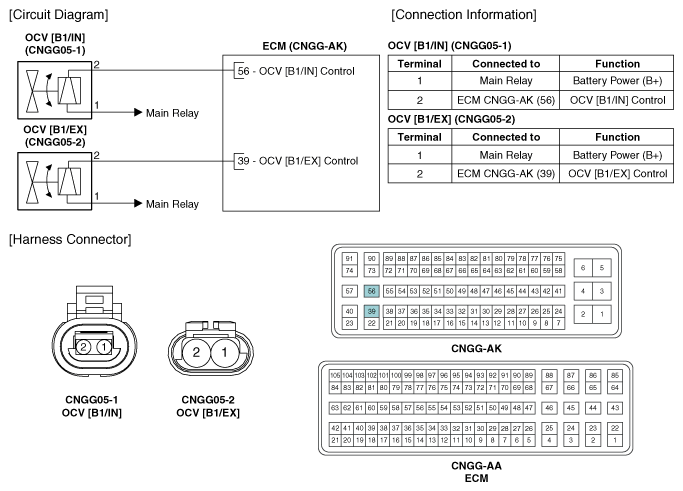

Fig 2: Continuous Variable Valve Timing Oil Control Valve Circuit Diagram (A/T)

Courtesy of KIA MOTORS AMERICA, INC.
