Circuit Diagram
(M/T)

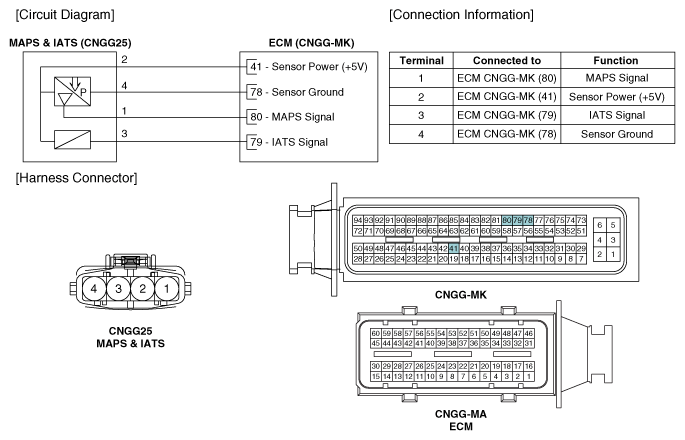

Fig 1: Intake Air Temperature Sensor Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

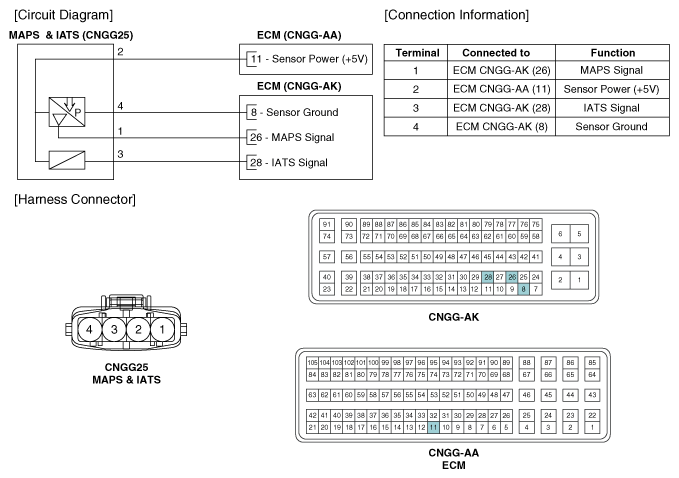

Fig 2: Intake Air Temperature Sensor Circuit Diagram (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
