Circuit Diagram

(M/T)

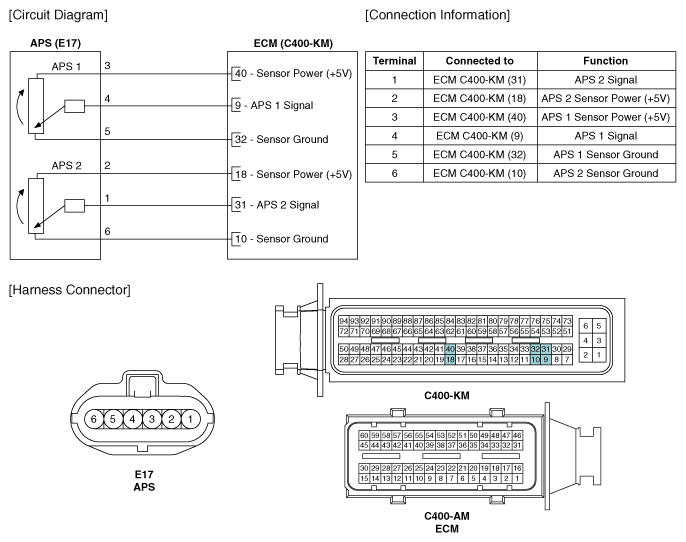

Fig 1: Accelerator Position Sensor (APS) Circuit Diagram - M/T
G11794911Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

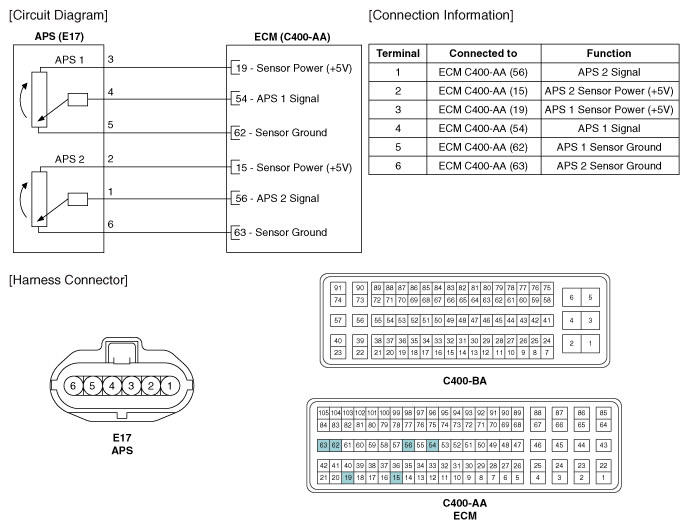

Fig 2: Accelerator Position Sensor (APS) Circuit Diagram - A/T
G11794912Courtesy of KIA MOTORS AMERICA, INC.
