Circuit Diagram

(M/T)

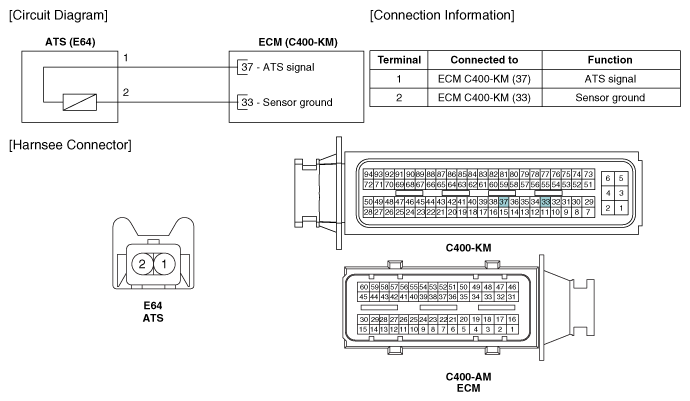

Fig 1: Ambient Temperature Sensor (ATS) Circuit Diagram And Connector - M/T
G11794863Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

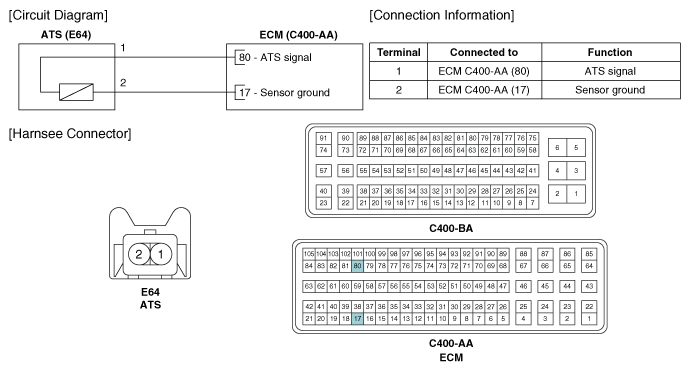

Fig 2: Ambient Temperature Sensor (ATS) Circuit Diagram And Connector - A/T
G11794864Courtesy of KIA MOTORS AMERICA, INC.
