Wave Form

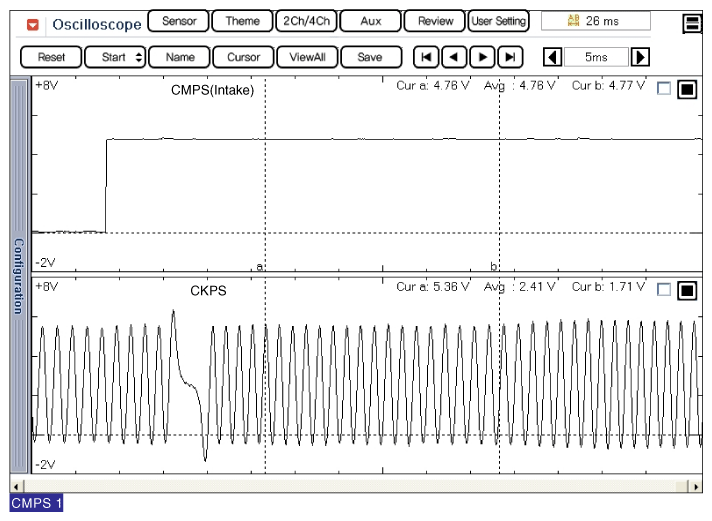

Fig 1: Camshaft Position Sensor (CMPS) Waveform (1 Of 2)
G11794885Courtesy of KIA MOTORS AMERICA, INC.

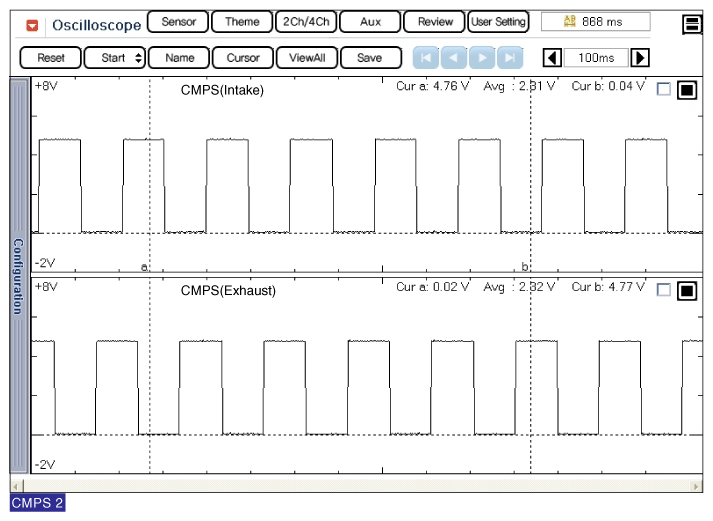

Fig 2: Camshaft Position Sensor (CMPS) Waveform (2 Of 2)
G11794886Courtesy of KIA MOTORS AMERICA, INC.
