Circuit Diagram
(M/T)

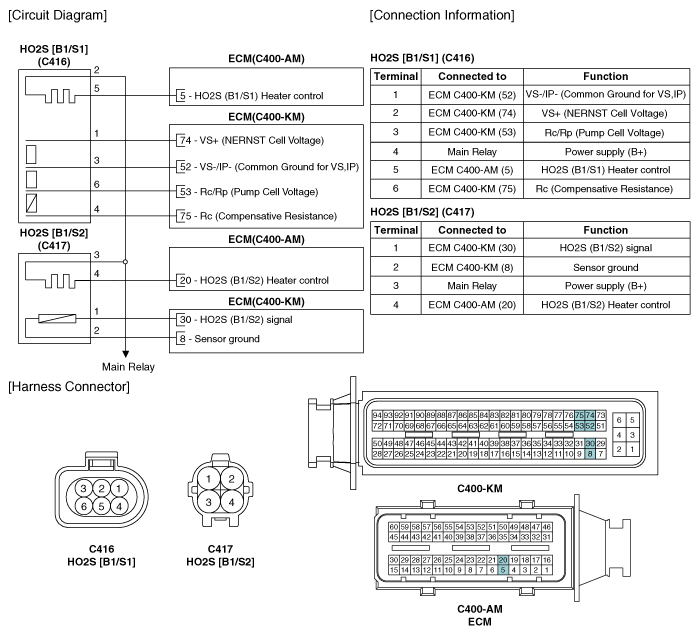

Fig 1: Heated Oxygen Sensor (HO2S) Circuit Diagram - M/T
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

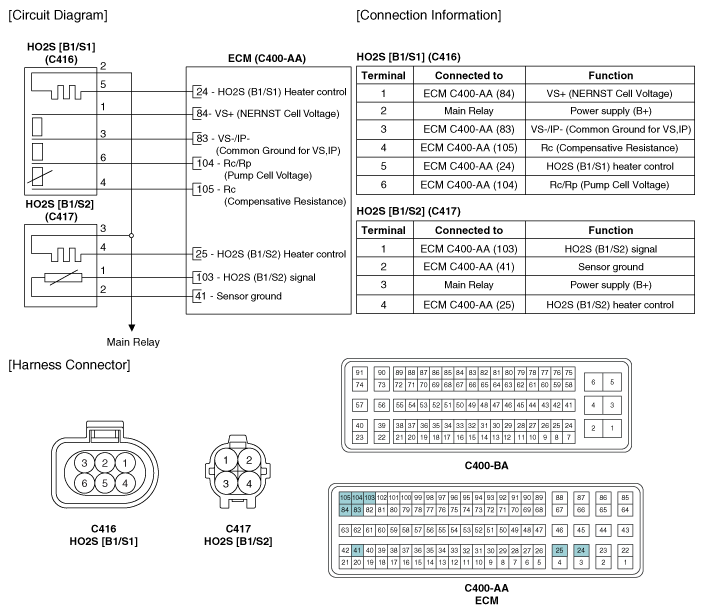

Fig 2: Heated Oxygen Sensor (HO2S) Circuit Diagram - A/T
Courtesy of KIA MOTORS AMERICA, INC.
