Components Location

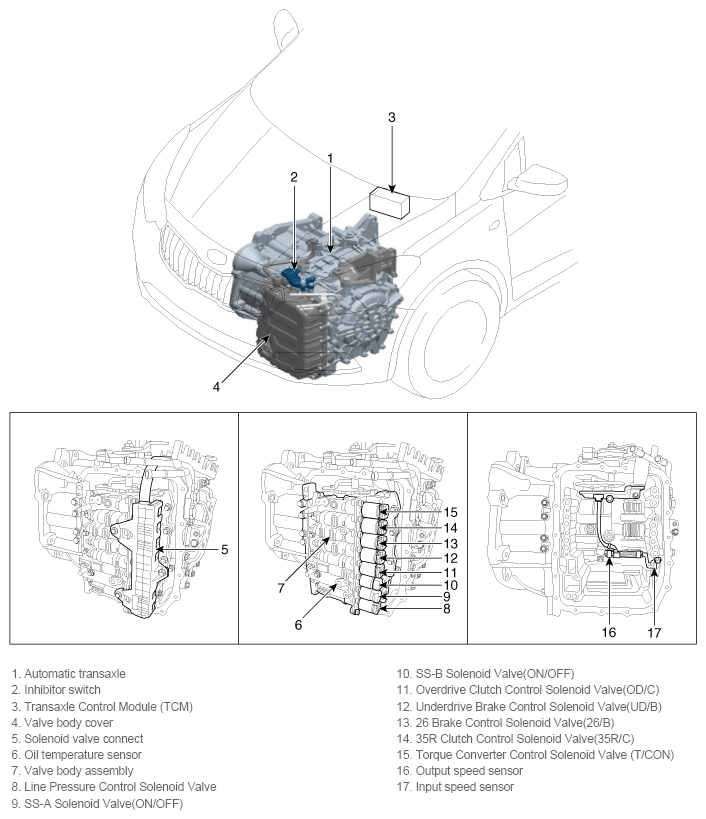

Fig 1: Locate Transaxle Assembly Components
G11795199Courtesy of KIA MOTORS AMERICA, INC.

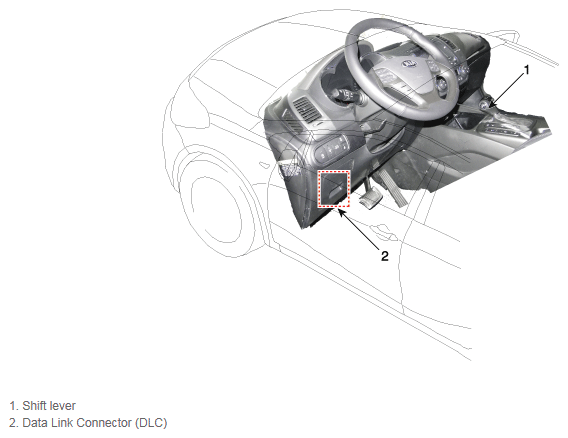

Fig 2: Locate Shift Lever And Data Link Connector
G11795200Courtesy of KIA MOTORS AMERICA, INC.
