Circuit Diagram

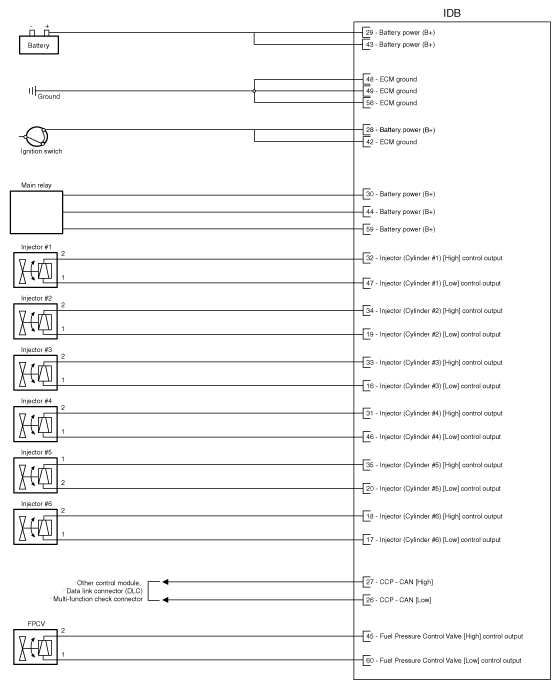

Fig 1: Injector Drive Box Circuit Diagram (1 Of 2)
G11804925Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Injector Drive Box Circuit Diagram (2 Of 2)
G11804926Courtesy of KIA MOTORS AMERICA, INC.
