Circuit Diagram

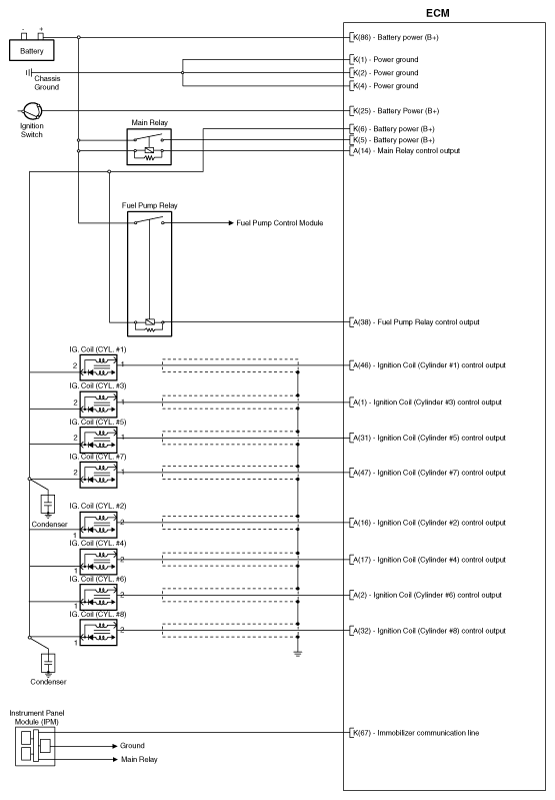

Fig 1: Electronic Control Module Circuit (1 Of 5)

G11802848

Courtesy of KIA MOTORS AMERICA, INC.

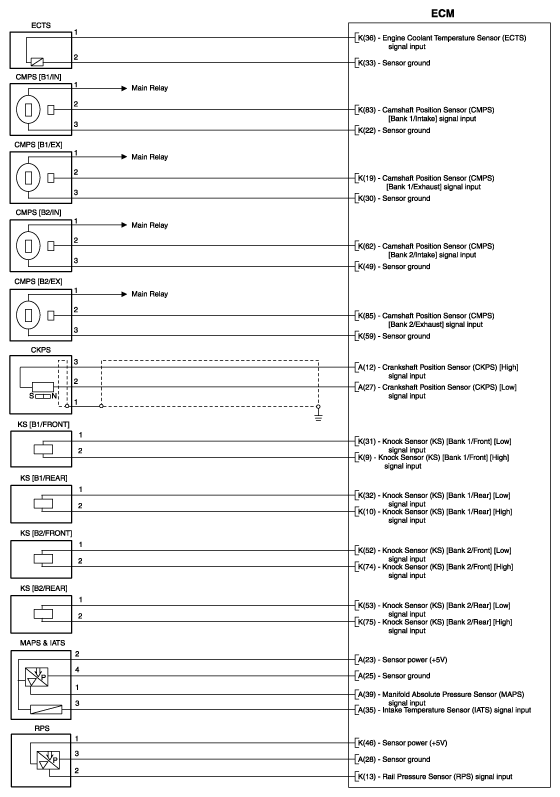

Fig 2: Electronic Control Module Circuit (2 Of 5)

G11802849

Courtesy of KIA MOTORS AMERICA, INC.

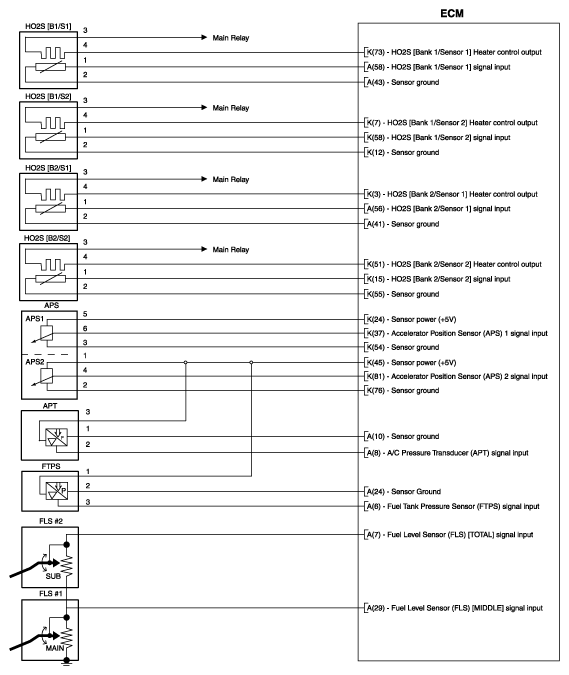

Fig 3: Electronic Control Module Circuit (3 Of 5)

G11802850

Courtesy of KIA MOTORS AMERICA, INC.

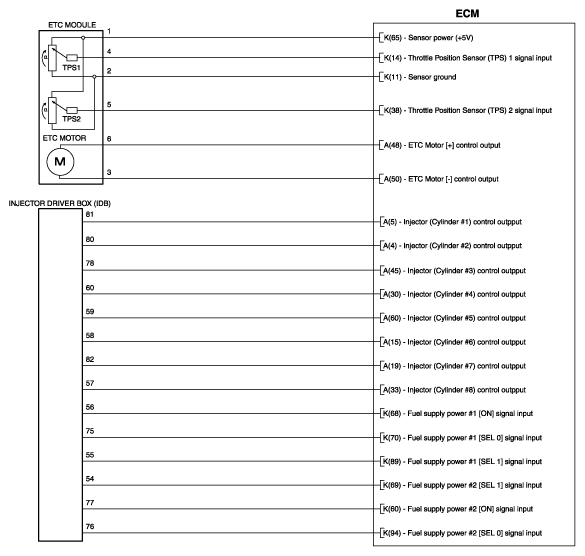

Fig 4: Electronic Control Module Circuit (4 Of 5)

G11802851

Courtesy of KIA MOTORS AMERICA, INC.

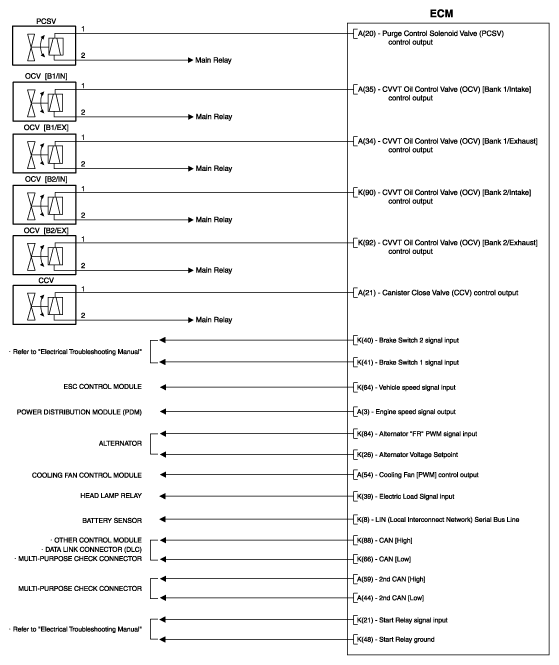

Fig 5: Electronic Control Module Circuit (5 Of 5)

G11802852

Courtesy of KIA MOTORS AMERICA, INC.
