Circuit Diagram

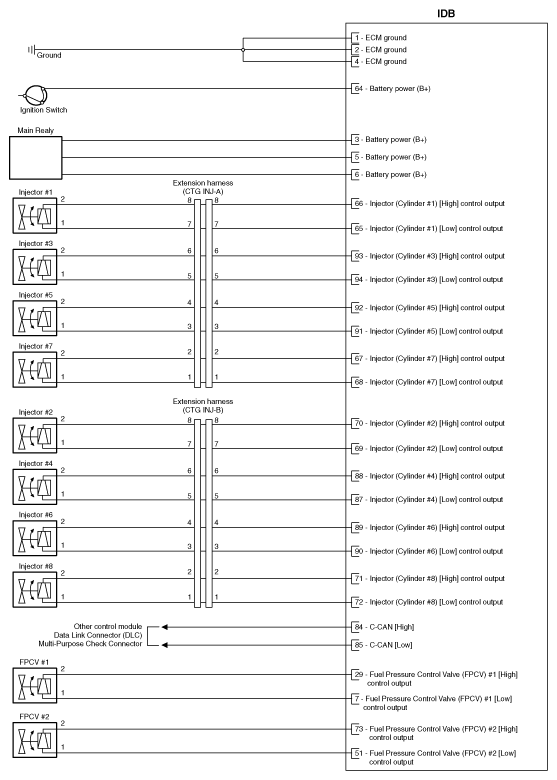

Fig 1: IDB System Circuit (1 Of 2)
G11802862Courtesy of KIA MOTORS AMERICA, INC.

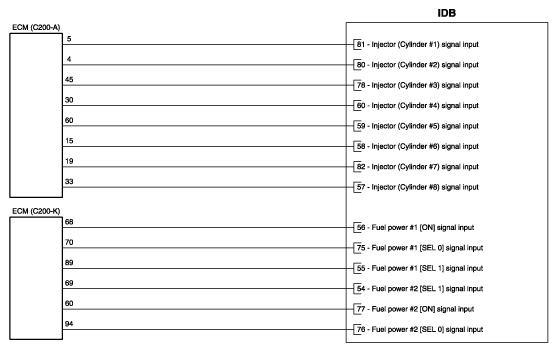

Fig 2: IDB System Circuit (2 Of 2)
G11802863Courtesy of KIA MOTORS AMERICA, INC.
