Circuit Diagram

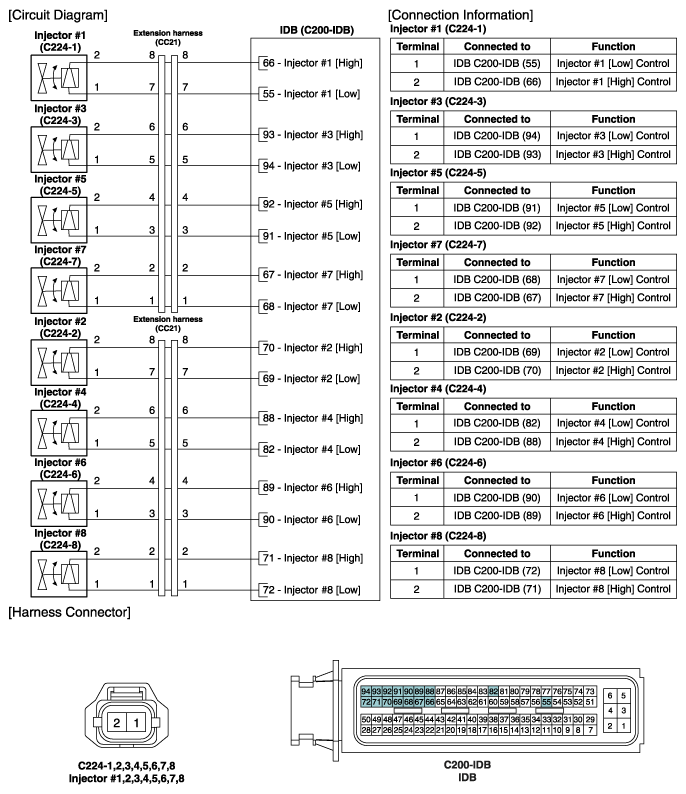

Fig 1: Injector 1 Schematic
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
