Repair Procedures: Removal

WARNING:

DON'T remove the camshaft position sensor while the engine is running or right after engine is turned off. The part and engine oil is hot and can cause burns.

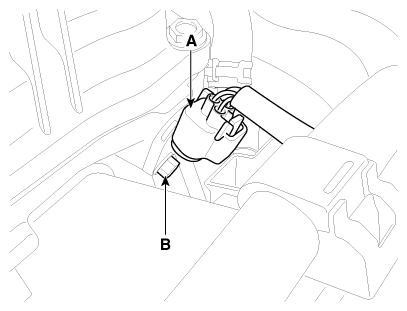

[Bank 1/Intake]

Fig 1: Removing Camshaft Position Sensor Connector And Installation Bolt (Bank 1/Intake)

Courtesy of KIA MOTORS AMERICA, INC.

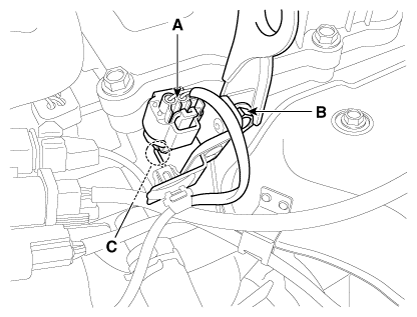

[Bank 1/Exhaust]

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the camshaft position sensor connector (A).
Remove the engine hanger & camshaft position sensor protector after loosening the mounting bolt (B).
Remove the mounting bolt (C), and then remove the sensor.

Fig 2: Removing Camshaft Position Sensor Connector And Installation Bolt (Bank 1/Exhaust)
Courtesy of KIA MOTORS AMERICA, INC.

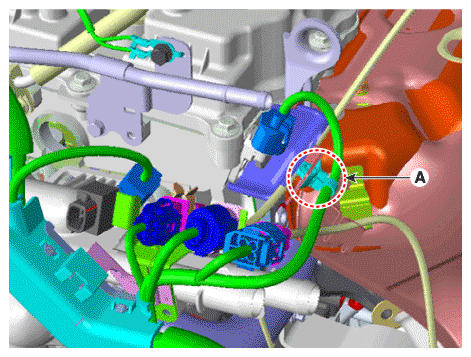

NOTE: When installing the sensor connector be sure to keep the wiring clip psition (A).

Fig 3: Locating Wiring Clip
Courtesy of KIA MOTORS AMERICA, INC.
