Circuit Diagram

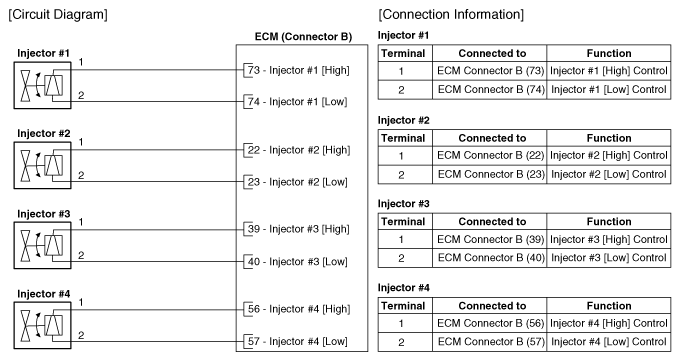

Fig 1: GDI Injector Schematic
G11826993Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: GDI Injector Connector Terminals
G11826994Courtesy of KIA MOTORS AMERICA, INC.
