Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (HEV)
>>
CVVT Oil Control Valve (OCV)
>>
Schematic Diagram
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

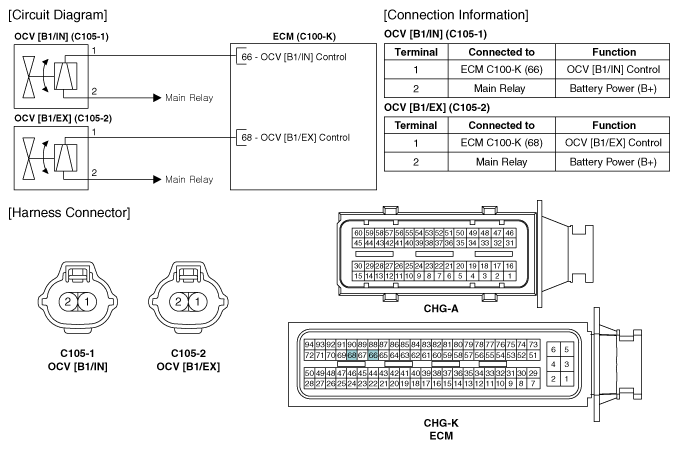

Fig 1: OCV Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
