Circuit Diagram

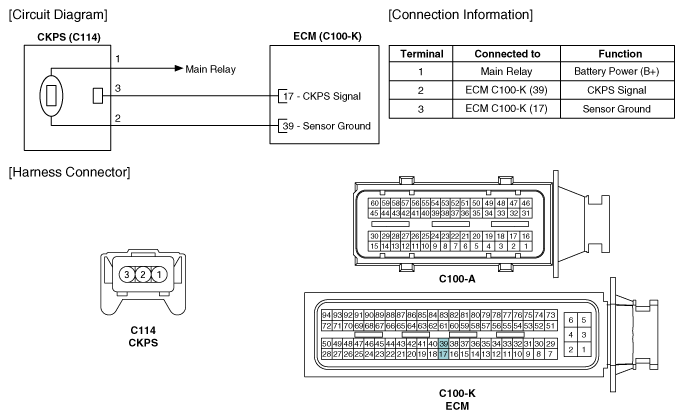

Fig 1: Crankshaft Position Sensor (CKPS) Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
