Circuit Diagram

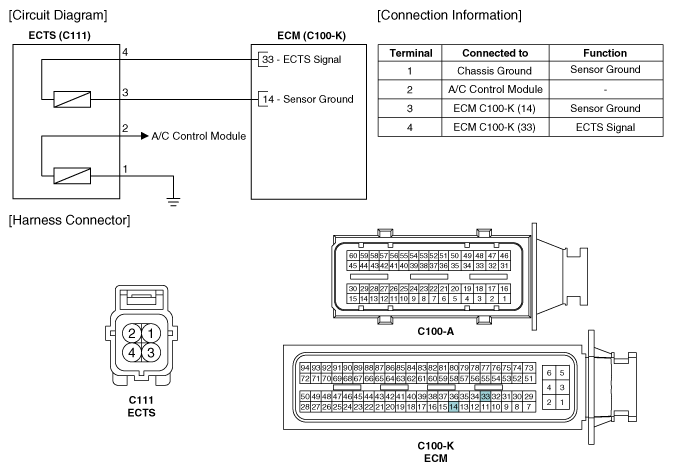

Fig 1: ECTS Circuit Diagram & Terminal Descriptions
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
