NVLD(Natural Vacuum Leakage Detection): Troubleshooting: Waveform

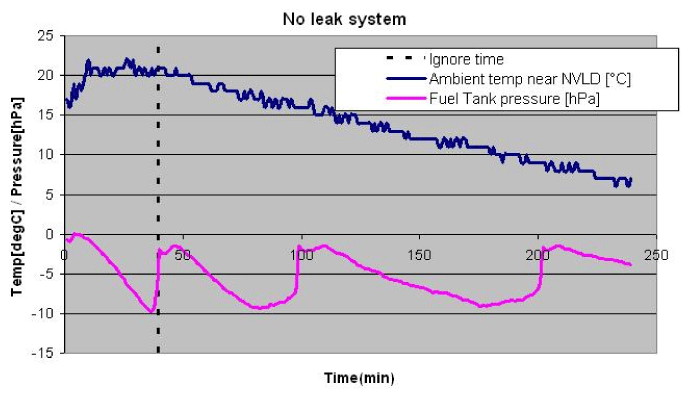

Fig 1: Temperature Pressure And Time Graph (No Leak System) (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

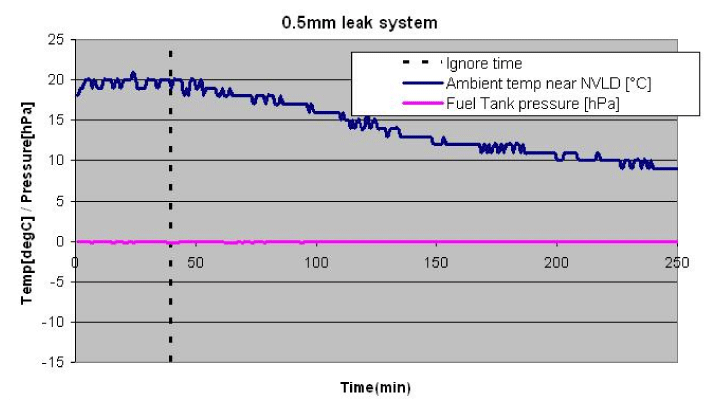

Fig 2: Temperature Pressure And Time Graph (0.5mm Leak System)(1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
