Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (HEV)
>>
Purge Control Solenoid Valve (PCSV)
>>
Schematic Diagram
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

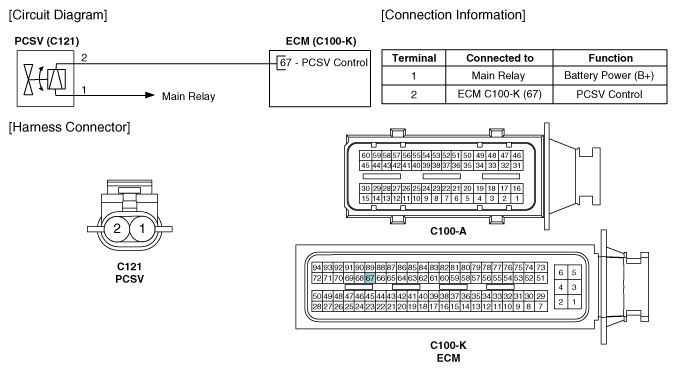

Fig 1: Purge Control Solenoid Valve Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
