Repair Procedures: Removal

Turn the ignition switch off and disconnect the battery (-) terminal.
Remove the RCV control solenoid valve.
(Refer to Engine Control System - "RCV CONTROL SOLENOID VALVE ")
Remove the purge control solenoid valve.
(Refer to Engine Control System - "PURGE CONTROL SOLENOID VALVE ")

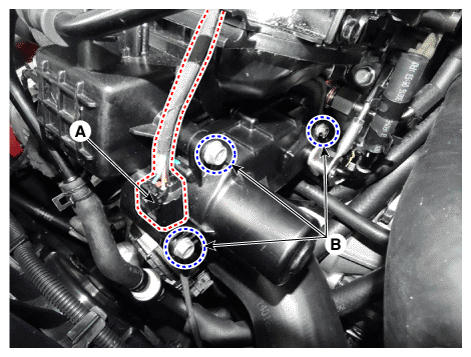

Disconnect the variable charge motion actuator connector (A).
Remove the variable charge motion actuator mounting bolts (B).

Fig 1: Removing Variable Charge Motion Actuator Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

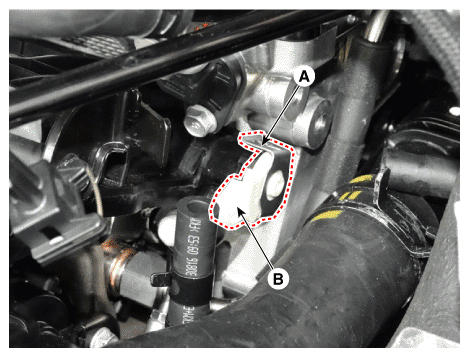

Remove VCMA rod clip (A) and connection link between flap (B) using screwdriver.

Fig 2: Removing VCMA Rod Clip
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: VCMA connection link can be damaged. So, make sure to remove it in a horizontal direction.

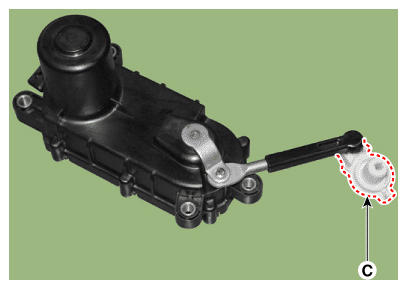

Make sure that groove part of the connection link (C) is pointing upward when mounting VCMA.

Fig 3: Locating VCMA Connection Link Groove Part
Courtesy of KIA MOTORS AMERICA, INC.
