Repair Procedures: Installation

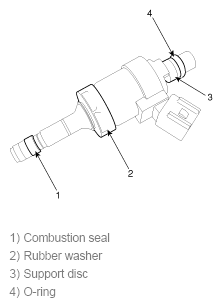

Fig 1: Combustion Seal, Rubber Washer, Support Disc And O-Ring
G11856697Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
  • Do Not reuse the used injector fixing clip.
  • Install the component to the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  • Apply engine oil to the injector O-ring.
  • Do Not reuse the used injector O-ring.
  • Do Not reuse the used bolt.
  • When inserting the injector, be careful not to damage the injector tip.
CAUTION:
  • Do Not reuse the support disc.
  • Do Not reuse the injector rubber washer.
  • When replacing the rubber washer, the rounded edge (A) part should be facing the cylinder installation part and the angulated edge (B) part should be facing the injector body part.
Fig 2: Locating Rounded Edge And Angulated Edge
G11856698Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: Do not reuse the combustion seal.
  1. Install in the reverse order of removal.
