Components Location

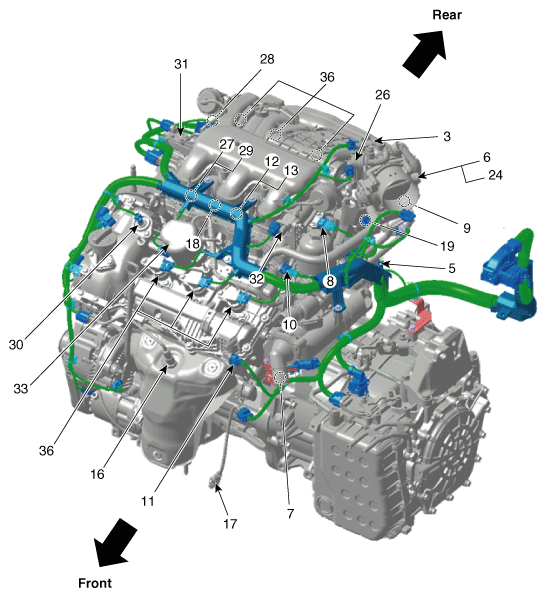

Fig 1: Locating Engine Control System Components (1 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

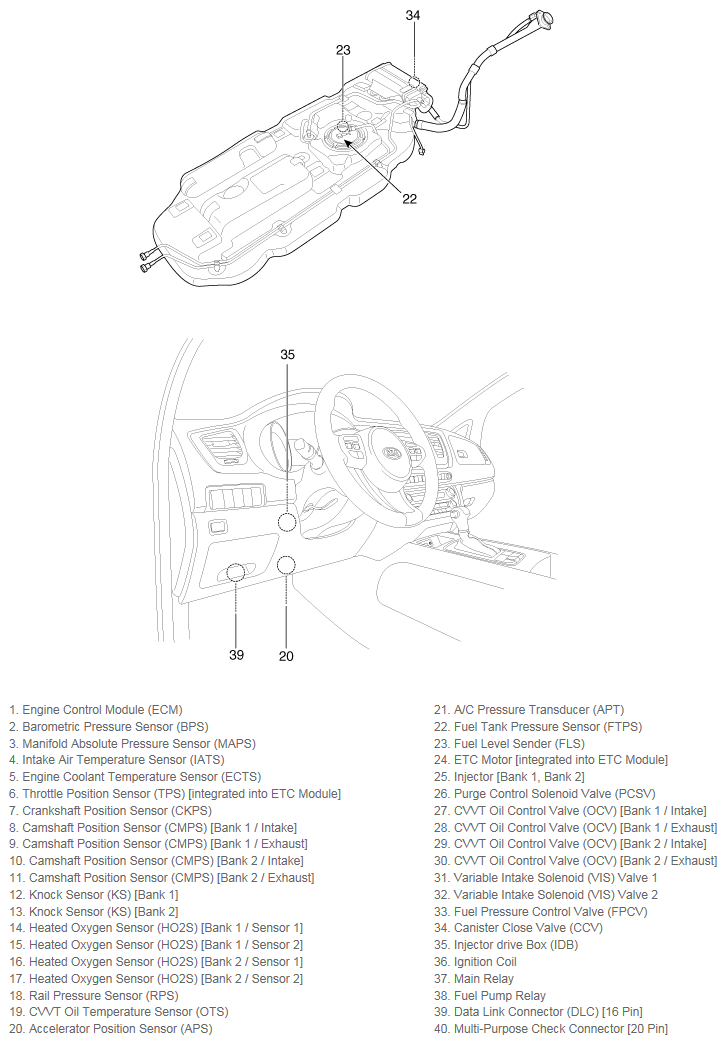

Fig 2: Locating Engine Control System Components (2 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

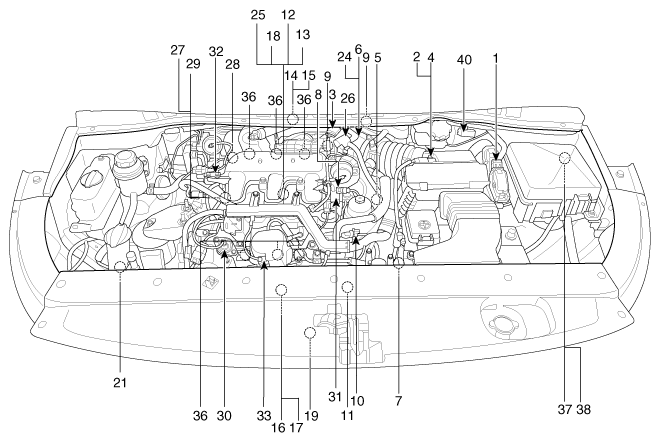

Fig 3: Locating Engine Control System Components (3 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

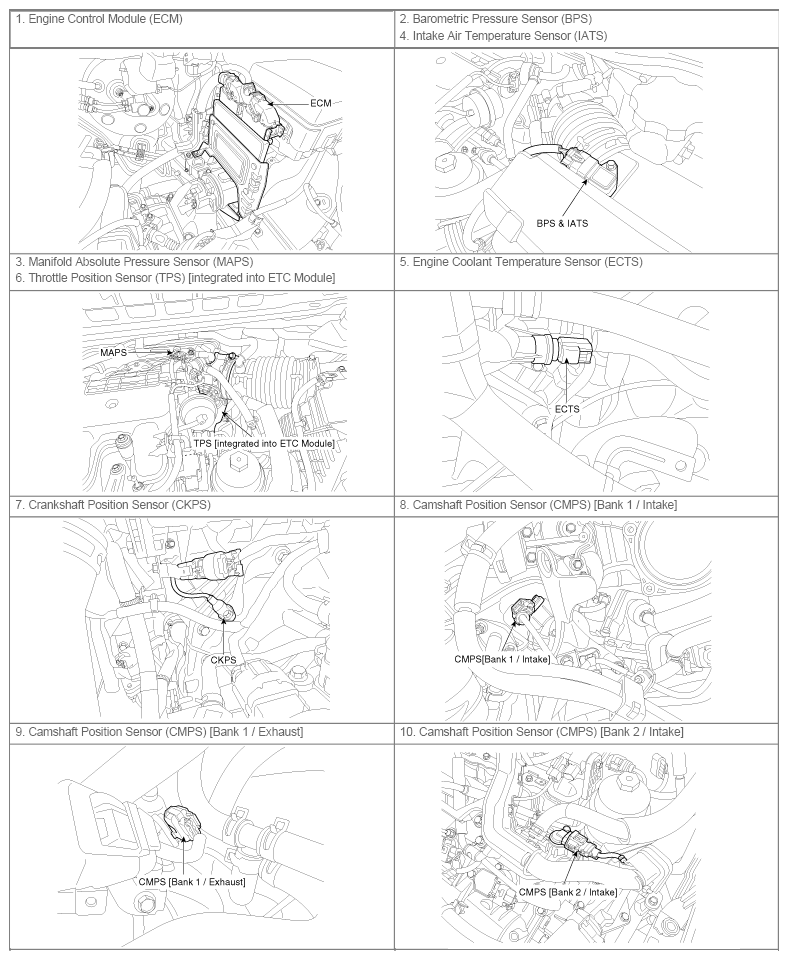

Fig 4: Locating Engine Control System Components (4 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

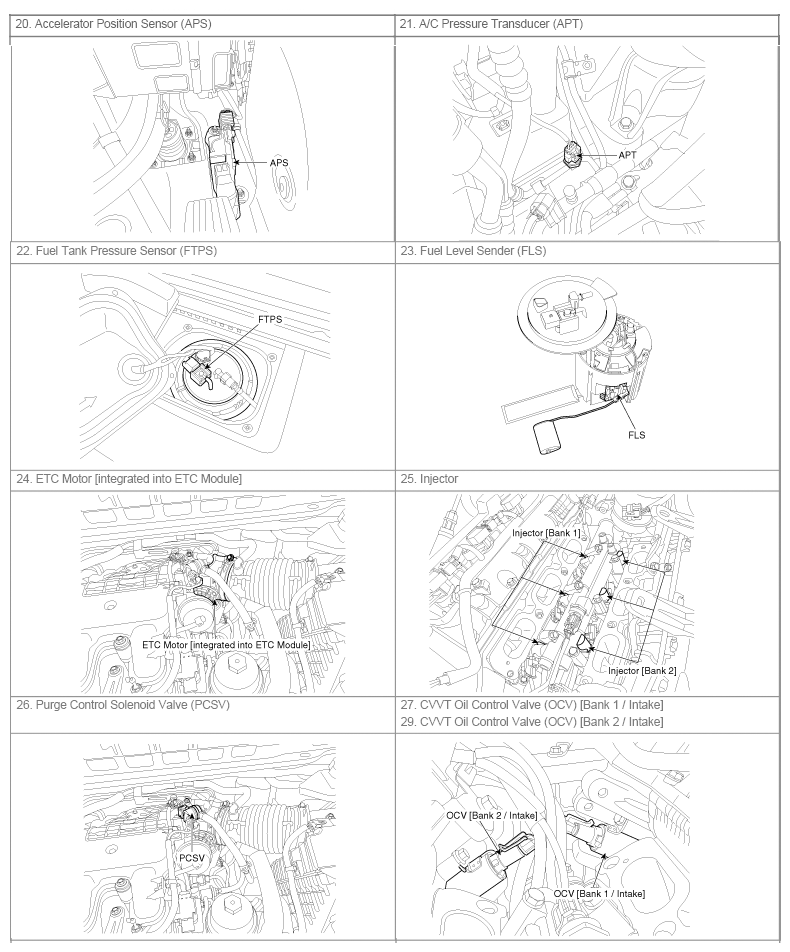

Fig 5: Locating Engine Control System Components (5 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

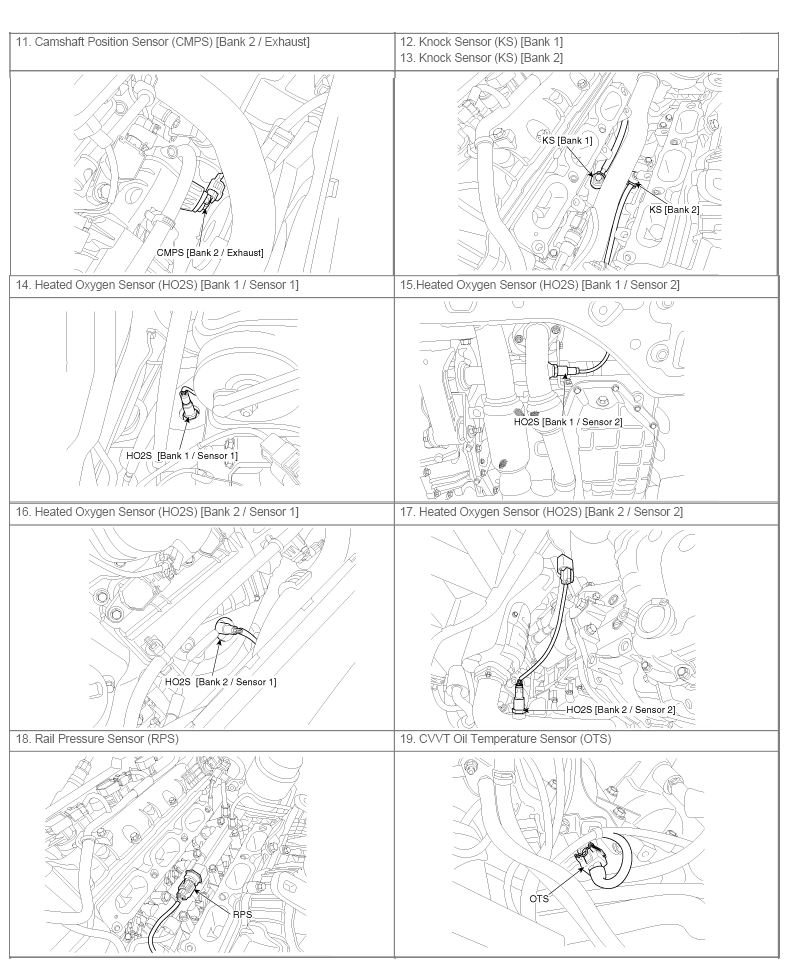

Fig 6: Locating Engine Control System Components (6 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

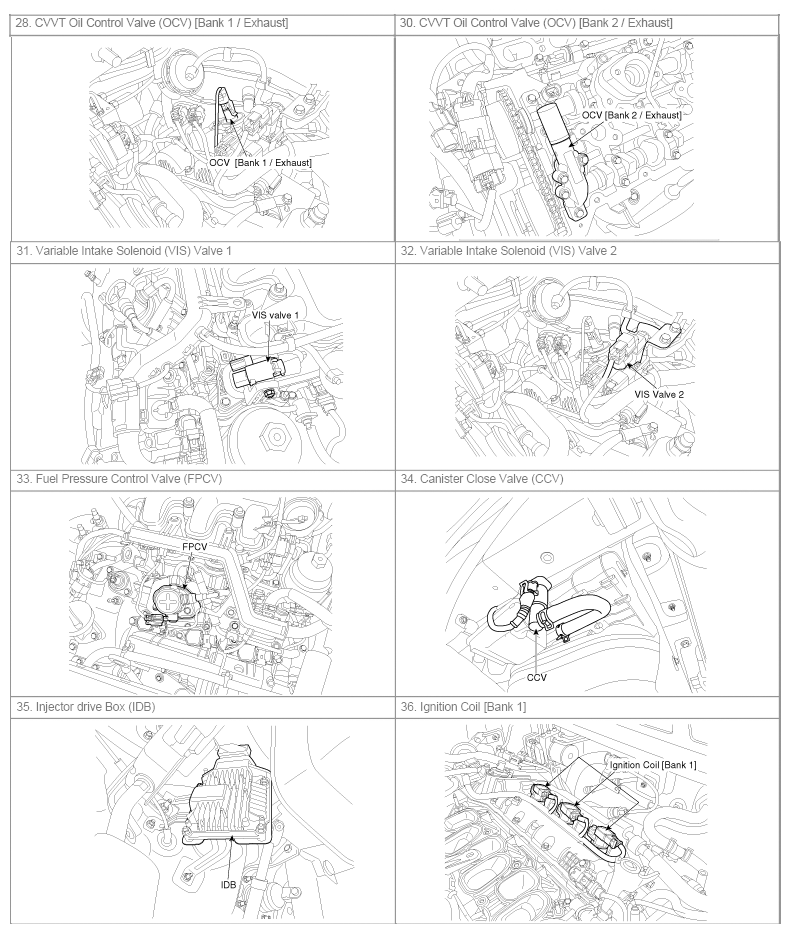

Fig 7: Locating Engine Control System Components (7 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.

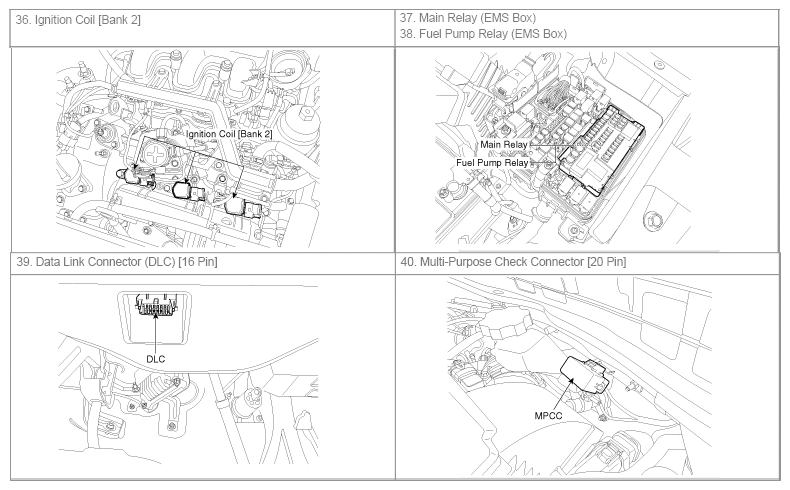

Fig 8: Locating Engine Control System Components (8 Of 8)

Courtesy of KIA MOTORS AMERICA, INC.
