Connector Pin Information

[Auto Down]

No. Connector A No. Connector B
1 IMS switch1_input 1 Battery (+) door
2 IMS switch2_input 2 Door lock relay_output
3 IMS switch3_input 3 Door unlock relay_output
4 Driver knob unlock switch_input 4 Power window up relay_output
5 Driver crash unlock switch_input 5 Battery (+) mirror
6 Driver key unlock switch_input 6 Battery (+) power window
7 Driver key lock switch_input 7 Power window down relay_output
8 - 8 GND_power
9 -
10 -
11 -
12 Mirror horizontal_output
13 Mirror vertical_output
14 Mirror center_output
15 B CAN high
16 B CAN low
17 GND_signal
18 Mirror sensor GND_output
19 Mirror horizontal sensor_output
20 Mirror vertical sensor_input
21 Mirror sensor power_output
22 Assist window lock switch_input
23 -
24 IMS tail lamp_output
25 -
26 Pocket lamp_output
27 Courtesy lamp_output
28 IGN1
29 Battery (+)
30 Battery (+) power
31 Mirror folding_output
32 Mirror unfolding_output

[Safety All, Safety Driver, Safety Front]

No. Connector A No. Connector B
1 IMS switch1_input 1 Battery (+) door
2 IMS switch2_input 2 Door lock relay_output
3 IMS set switch_input 3 Door unlock relay_output
4 Driver knob unlock switch_input 4 -
5 Driver crash unlock switch_input 5 Battery (+) mirror
6 Driver key unlock switch_input 6 -
7 Driver key lock switch_input 7 -
8 Enable front left_output 8 GND_power
9 Auto front left_output
10 Down front left_output
11 Up front left_output
12 Mirror horizontal_output
13 Mirror vertical_output
14 Mirror center_output
15 B CAN high
16 B CAN low
17 GND_signal
18 Mirror sensor GND_output
19 Mirror horizontal sensor_output
20 Mirror vertical sensor_input
21 Mirror sensor power_output
22 Assist window lock switch_input
23 -
24 IMS tail lamp_output
25 -
26 Pocket lamp_output
27 Courtesy lamp_output
28 IGN1
29 Battery (+)
30 Battery (+) power
31 Mirror folding_output
32 Mirror unfolding_output


No. Connector A No. Connector B
1 Battery (+) 1 -
2 IGN1 2 -
3   3 -
4 Mirror sensor ground_output 4 Assist power window up relay_output
5 Mirror horizontal sensor_input 5 -
6 Mirror vertical sensor_input 6 Battery (+) power window
7 Mirror sensor power_output 7 Assist power window down relay_output
8 Assist up switch_input 8 GND_power
9 Assist down switch_input
10 -
11 Ground_signal
12 -
13 B CAN Low
14 B CAN High
15 -
16 -
17 -
18 -
19 Assist key lock switch_input
20 Assist key unlock switch_input
21 Assist key unlock monitoring switch
22 Assist window lock switch_input
23 Assist door lock_output
24 Assist door unlock_output

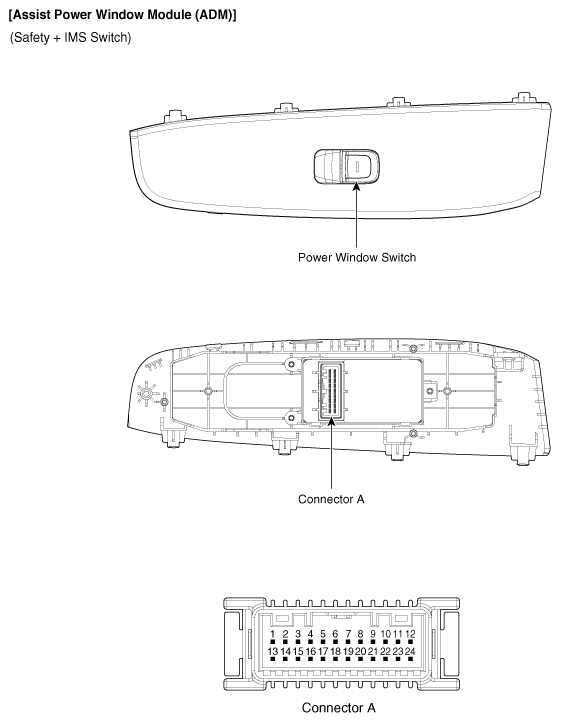

Fig 1: Locate Assist Power Window Switch Connector Terminals (Safety + IMS Switch)
G11867008Courtesy of KIA MOTORS AMERICA, INC.


No. Connector A
1 Battery (+)
2 IGN1
3 Battery (+) power
4 Mirror sensor ground_output
5 Mirror horizontal sensor_input
6 Mirror vertical sensor_input
7 Mirror sensor power_output
8 Assist up switch_input
9 Assist down switch_input
10 Assist auto switch_input
11 Ground_signal
12 Ground_power
13 B CAN Low
14 B CAN High
15 -
16 Front right up_output
17 Front right down_output
18 Front right auto_output
19 Assist key lock switch_input
20 Assist key unlock switch_input
21 Assist key unlock monitoring switch
22 -
23 Assist door lock_output
24 Assist door unlock_output

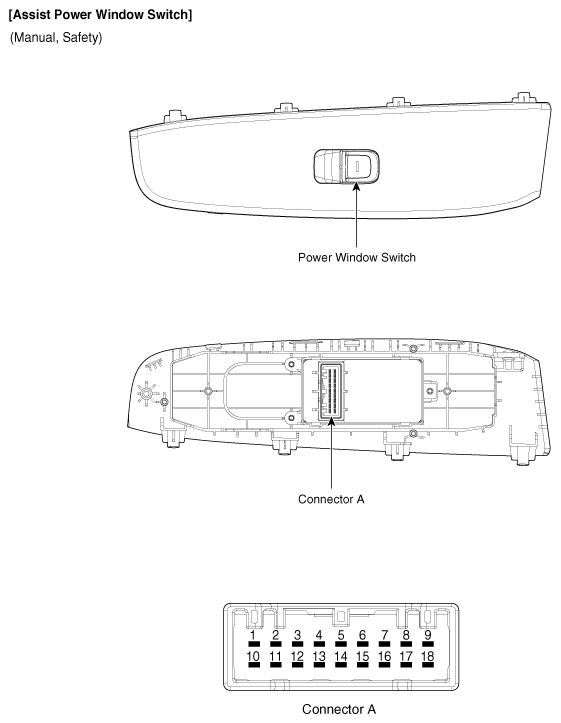

Fig 1: Locating Assist Power Window Switch Connector Terminals (Manual And Safety)
G11867009Courtesy of KIA MOTORS AMERICA, INC.


No. Manual No. Safety
1 Ground_power 1 Ground_power
2 - 2 -
3 - 3 -
4 Assist door lock 4 Assist door lock
5 Assist door unlock 5 Assist door unlock
6 - 6 -
7 Tail 7 Tail
8 - 8 -
9 - 9 Assist auto switch_input
10 Assist down switch_input 10 Assist down switch_input
11 Assist window lock switch_input 11 -
12 Assist up switch_input 12 Assist up switch_input
13 Assist power window down relay_output 13 Front right down_output
14 - 14 Front right auto_output
15 Assist power window up relay_output 15 Front right up_output
16 - 16 -
17 Battery (+) power window 17 Battery (+)
18 - 18 -


[Manual]

No. Connector A (Left) No. Connector A (Right)
1 Ground_power 1 Ground_power
2 - 2 -
3 High heat IND 3 High heat IND
4 Seat warmer mode 4 Seat warmer mode
5 Low heat IND 5 Low heat IND
6 - 6 -
7 Tail 7 Tail
8 - 8 -
9 - 9 -
10 Rear left down switch_input 10 Rear right down switch_input
11 Window lock switch_input 11 Window lock switch_input
12 Rear left up switch_input 12 Rear right up switch_input
13 Rear left power window down relay_output 13 Rear right power window down relay_output
14 - 14 -
15 Rear left power window up relay_output 15 Rear right power window up relay_output
16 - 16 -
17 Battery (+) left power window 17 Battery (+) right power window
18 - 18 -

[Safety]

No. Connector A (Left) No. Connector A (Right)
1 Ground_power 1 Ground_power
2 - 2 -
3 High heat IND 3 High heat IND
4 Seat warmer mode 4 Seat warmer mode
5 Low heat IND 5 Low heat IND
6 - 6 -
7 Tail 7 Tail
8 - 8 -
9 Rear left auto switch_input 9 Rear right auto switch_input
10 Rear left down switch_input 10 Rear right down switch_input
11 Window lock switch_input 11 Window lock switch_input
12 Rear left up switch_input 12 Rear right up switch_input
13 Rear left down_output 13 Rear right down_output
14 Rear left auto_output 14 Rear right auto_output
15 Rear left up_output 15 Rear right up_output
16 - 16 -
17 - 17 -
18 - 18 -
