Operation For Each Function Of Button Starting: Notes

• The electric power is changed through OFF → ACC→IGN→OFF by pressing the button without stepping on the brake (Or with stepping on the brake) inside the car with FOB key (However, repeat ACC↔IGN when it is not in P. Converting to OFF is impossible.)
• The engine can be ignited when the button is pressed while stepping on the brake at P/N positions with FOB key.

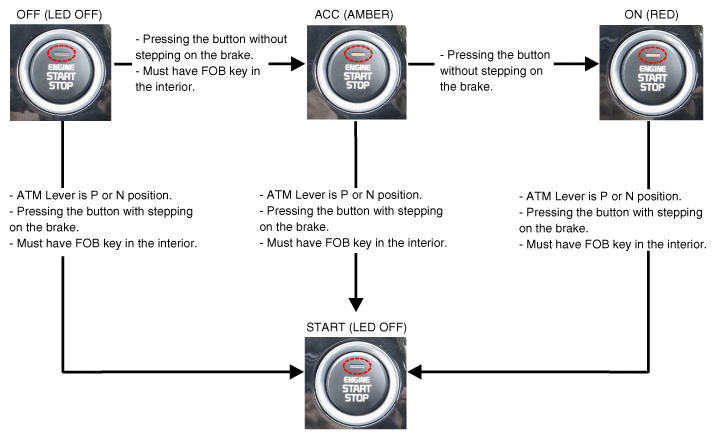

Fig 1: Button Starting Operation Diagram

Courtesy of KIA MOTORS AMERICA, INC.

• The ignition OFF is possible in the state of vehicle stop. (Ignition OFF is possible in any position of ATM lever.)
• The lever shall be shifted for parking in gear N by pressing the ATM lever release button after electric power off in P.

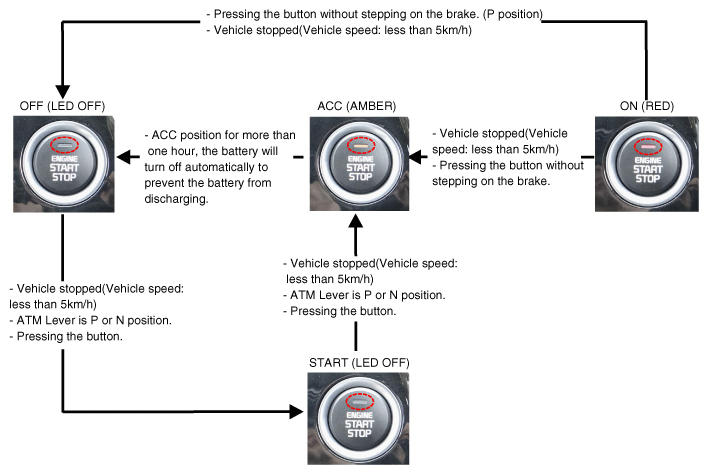

Fig 2: Electric Power OFF/Ignition OFF Operation Diagram

Courtesy of KIA MOTORS AMERICA, INC.

• A method of stopping the engine by force in case of overturned vehicle, fuel leakage or emergency (e.g. Accelerator pedal returning failure)
• The engine is off and returned to the ACC state when the button is pressed for 2 seconds and more than 3 times successively within 3 seconds during driving. The restarting is available for next 30 seconds regardless of FOB key and the electric power is changed through OFF → ACC→IGN→OFF by pressing the button without stepping on the brake (or with stepping on the brake) inside the car with FOB key. (However, when it is not in P position, ACC↔IGN is repeated. The conversion to OFF is impossible.)

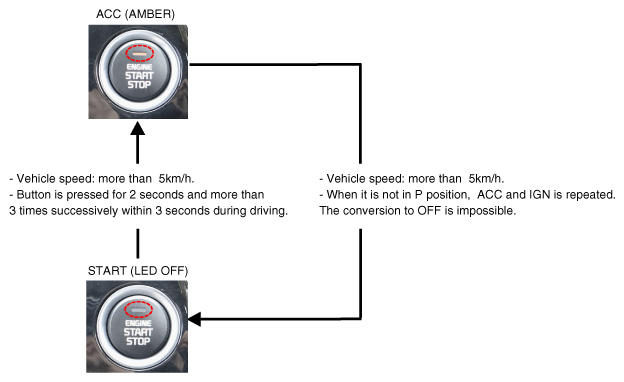

Fig 3: Stop Engine Force Operation Diagram

Courtesy of KIA MOTORS AMERICA, INC.

Engine start is available when the brake pedal is stepped on within 0.5 second after pressing the start button in engine OFF state.

• Electric power OFF: LED OFF
• Electric power ACC state: Amber LED ON
• Electric power ON: Red LED ON
• During cranking: Maintaining the previous LED ON state before cranking
• Starting ON state: LED OFF
