Repair Procedure: Adjustment
NOTE:

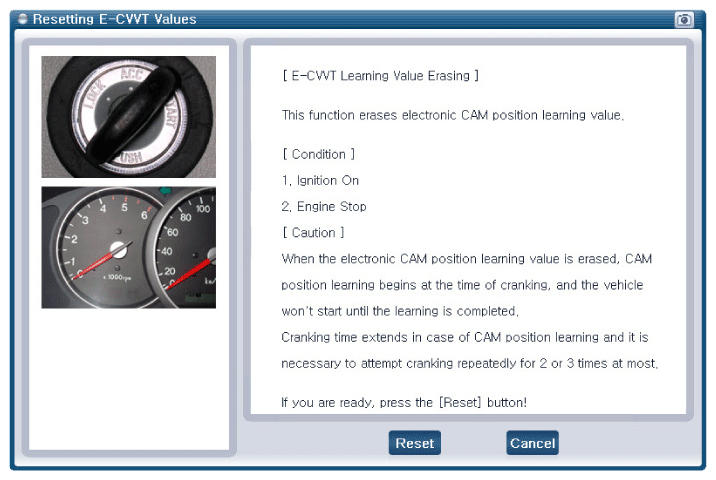

When the electric E-CVVT assembly is replaced or remounted, make sure to use the additional feature menu on the GDS diagnosis equipment and reset the learned value.
When the learned value for electronic cam position is erased, start learning the cam position while cranking. When it is completed, engine is started.
Cranking should be repeated 2 to 3 times maximum for learning.
When the learned value for electronic cam position is erased, start learning the cam position while cranking. When it is completed, engine is started.
Cranking should be repeated 2 to 3 times maximum for learning.
