Signal Waveform

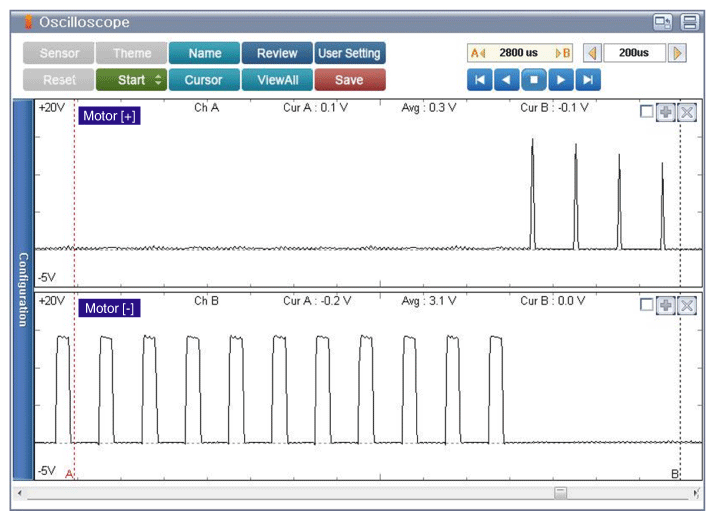

Fig 1: Display - Motor Signal Waveform Screen
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Display - CMPS Signal Waveform Screen
Courtesy of KIA MOTORS AMERICA, INC.
There is no separate sensor inside E-CVVT. Exhaust side 4-flank type target wheel is applied in order to compare CKPS and CMPS and calculate the valve timing.
