Repair Procedures: Installation

  1. Install in the reverse order of removal.
NOTE:
  • The existing valve body cover gasket must be replaced with new one. (Do not reuse it.)
  • Perform the procedures below after replacing the solenoid valve.
  1. Refill the automatic transaxle with fluid.

    (Refer to Hydraulic System - "FLUID ")

  2. Reset the automatic transaxle adaptive values using the KDS/GDS.

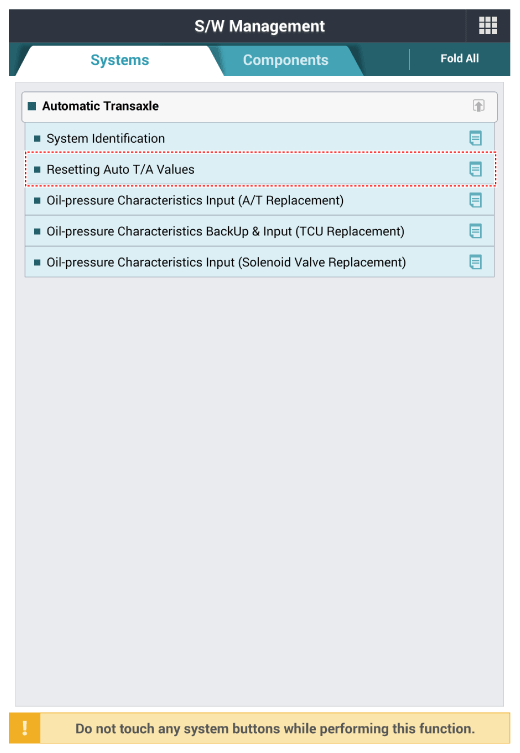

    Fig 1: Screen Display Resetting Auto T/A Values
    G11865880Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transaxle Control System - "Repair Procedures ")

  4. Confirm there is no fluid leak on connections after repairs.
