Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Detach the gear boots (A).
 Courtesy of
|

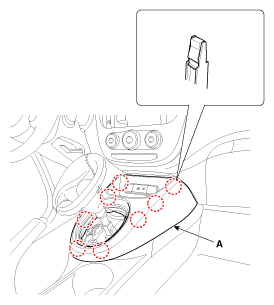

- Using a screwdriver or remover, remove the console upper cover (A).
 Courtesy of
|
- Disconnect the connectors (A) from the console upper cover.
Courtesy of KIA MOTORS AMERICA, INC.
- Remove the start/stop button (A) after loosening the mounting screws.
 Courtesy of
|
