Components Location

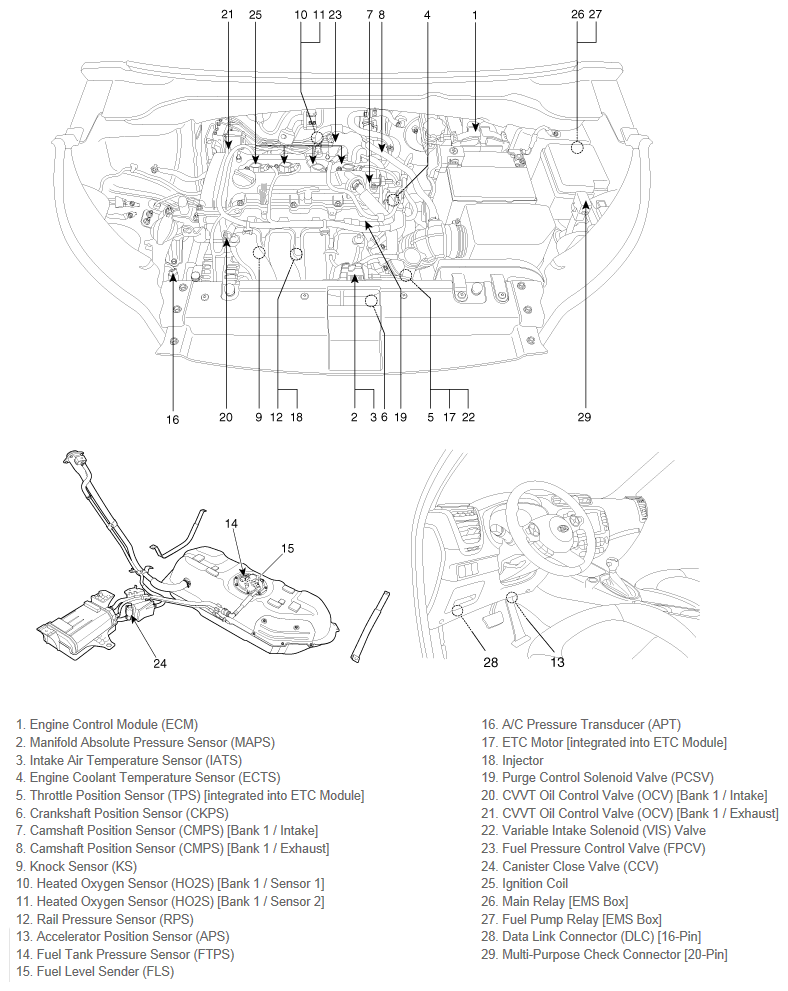

G11955468Courtesy of KIA MOTORS AMERICA, INC.

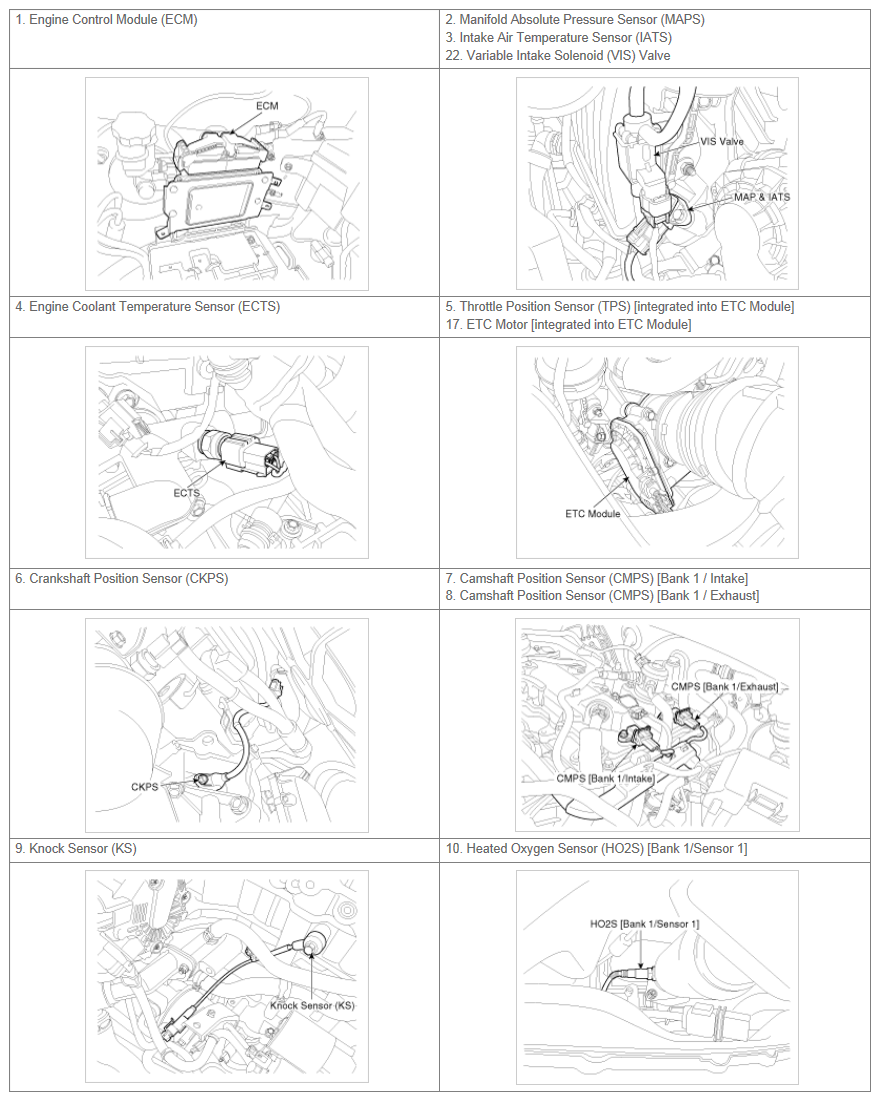

G11955469Courtesy of KIA MOTORS AMERICA, INC.

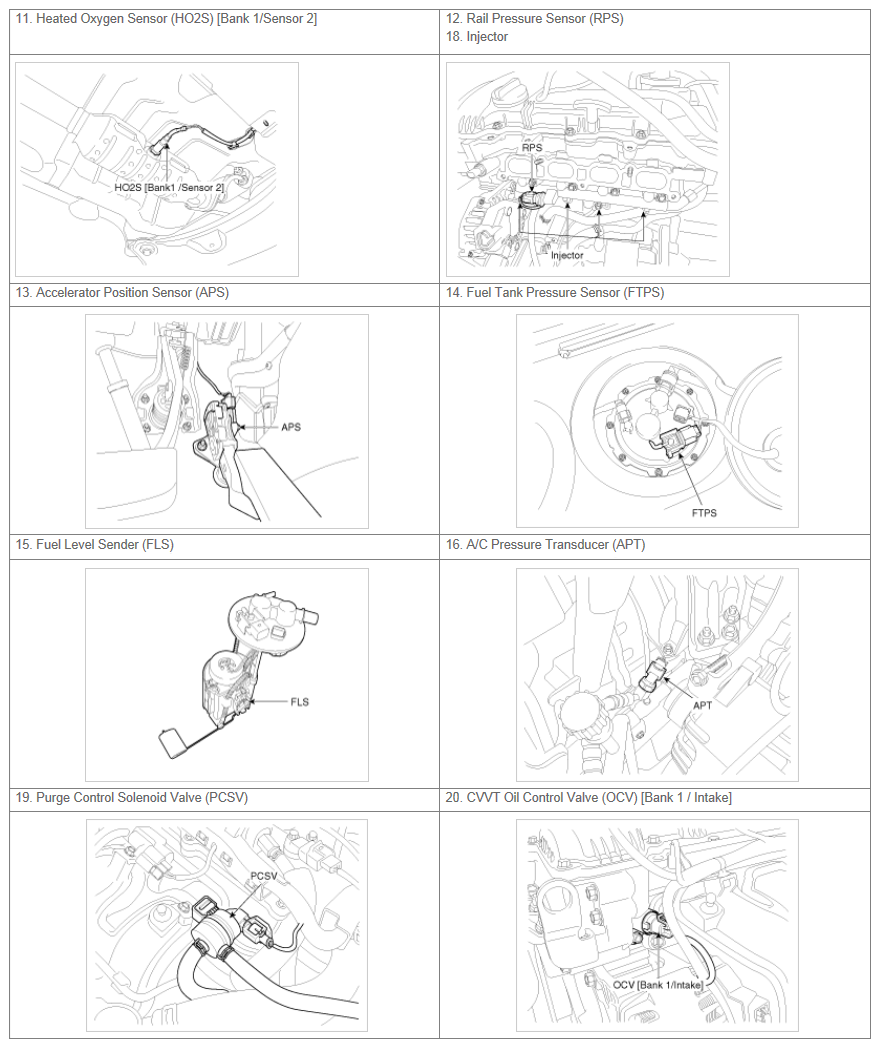

G11955470Courtesy of KIA MOTORS AMERICA, INC.

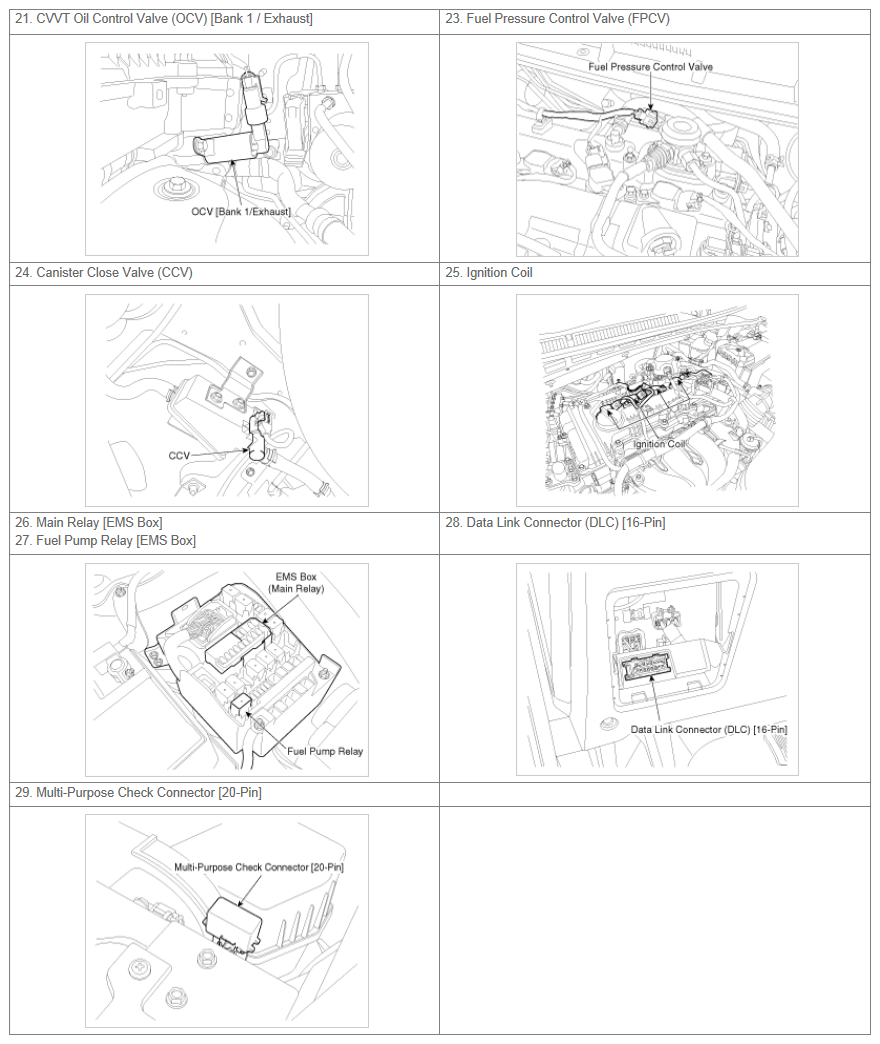

G11955471Courtesy of KIA MOTORS AMERICA, INC.
