Circuit Diagram: (M/T)

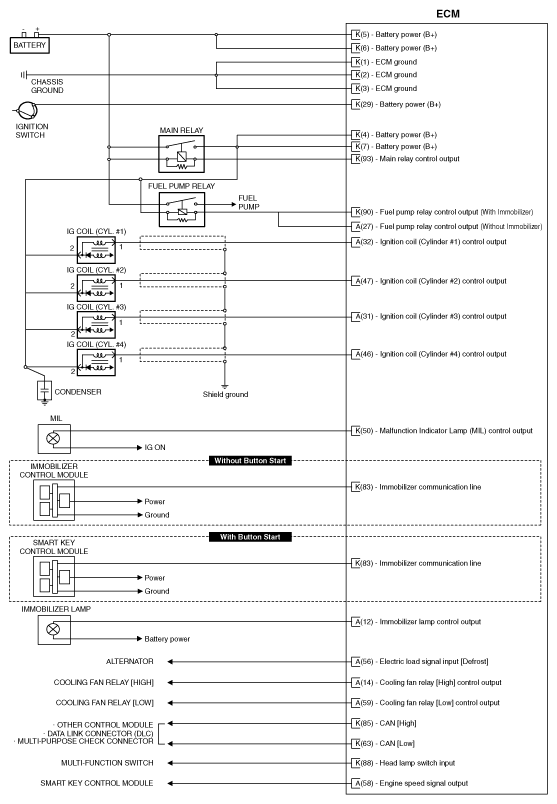

G11955474Courtesy of KIA MOTORS AMERICA, INC.

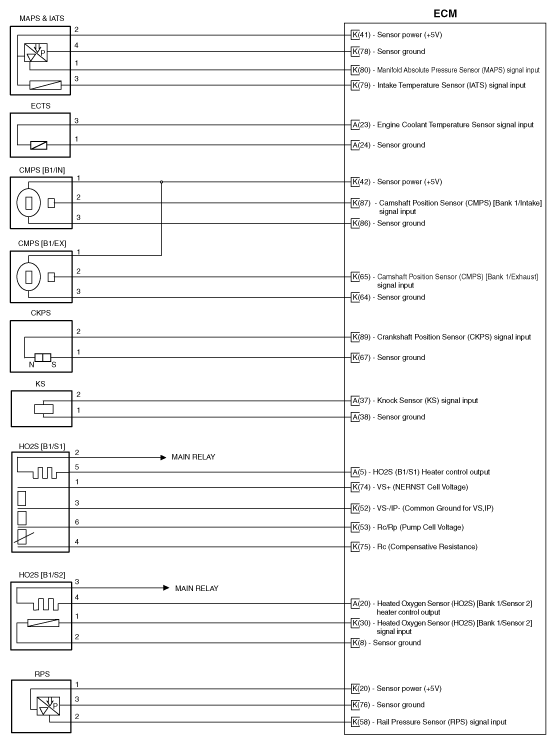

G11955475Courtesy of KIA MOTORS AMERICA, INC.

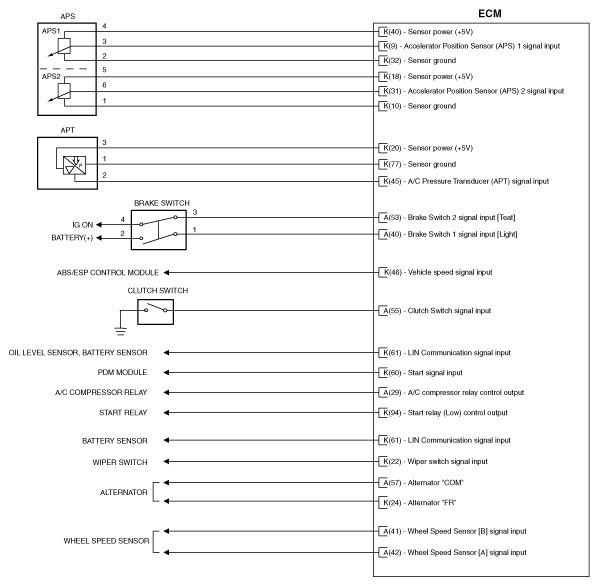

G11955476Courtesy of KIA MOTORS AMERICA, INC.

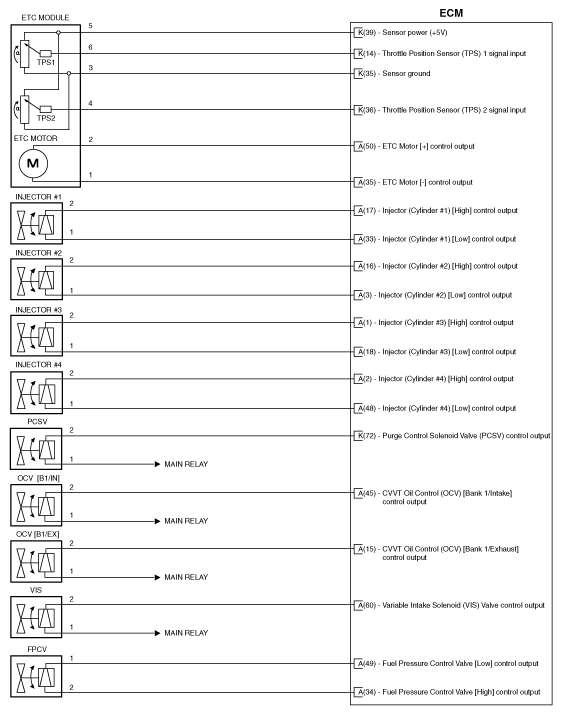

G11955477Courtesy of KIA MOTORS AMERICA, INC.
