Automatic Transaxle Control System - 2.0L
>>
Transaxle Control Module (TCM)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

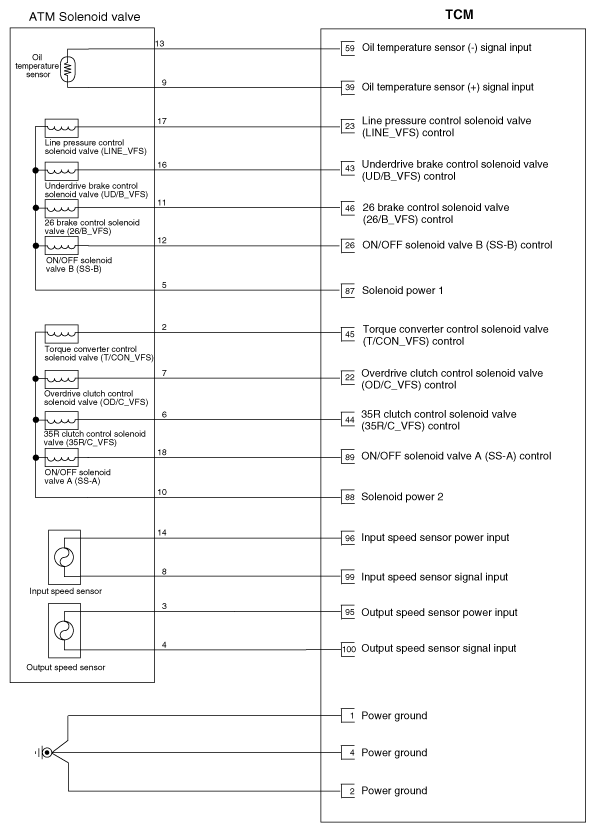

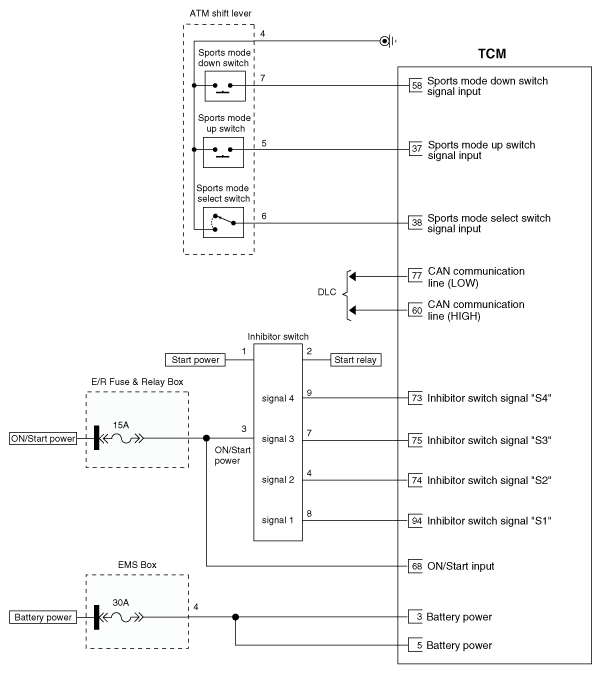

Circuit Diagram
Courtesy of
Courtesy of
Courtesy of
Courtesy of
