Components And Components Location: Components

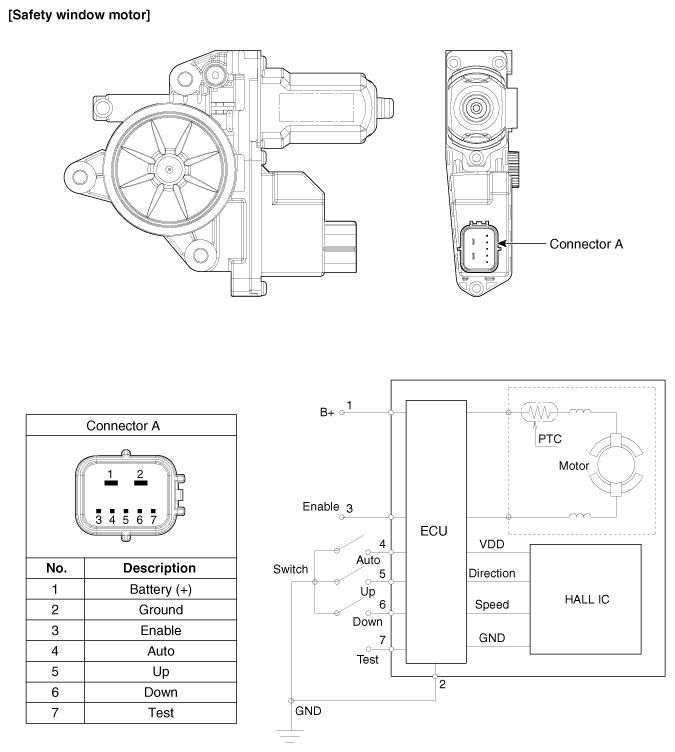

Fig 1: Safety Window Motor Connector
G11952618Courtesy of KIA MOTORS AMERICA, INC.

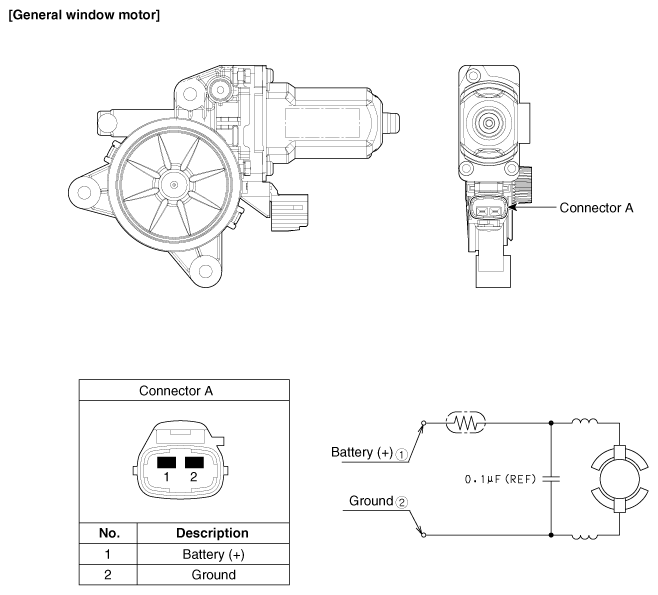

Fig 2: General Window Motor Connector
G11952619Courtesy of KIA MOTORS AMERICA, INC.
