Driver Power Window Switch

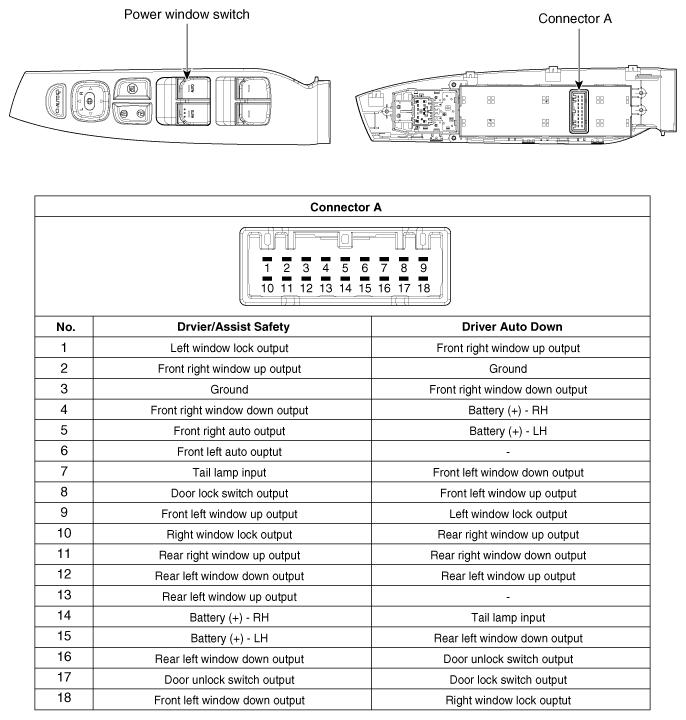

Fig 1: Driver Power Window Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
