Assist Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim panel.
(Refer to "FRONT DOOR TRIM .")
Disconnect the connector (A) from the switch.

Fig 1: Assist Power Window Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

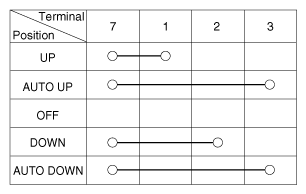

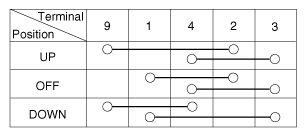

Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
