Power Window Main Switch Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to "FRONT DOOR TRIM .")

  3. Disconnect the connector (A) from the power window switch module.
    Fig 1: Power Window Switch Connector
    G11952631Courtesy of KIA MOTORS AMERICA, INC.
  4. Check for continuity between the terminals in each switch position according to the table.

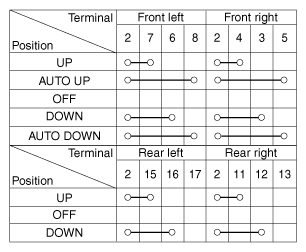

    [Driver/Assist Safety]

    G11952632Courtesy of

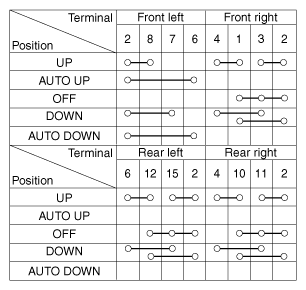

    [Driver Auto Down]

    G11952633Courtesy of
