Rear Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the rear door trim panel.
(Refer to "REAR DOOR TRIM .")
Disconnect the connector (A) from the switch.

Courtesy of

Fig 1: Rear Power Window Switch Connectors
Courtesy of KIA MOTORS AMERICA, INC.

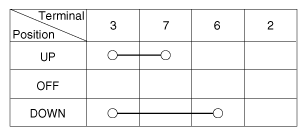

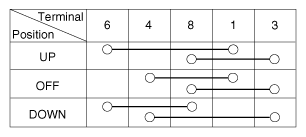

Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
[With Seat Heater]

Courtesy of

[Without Seat Heater]

Courtesy of
