Circuit Diagram

(M/T)

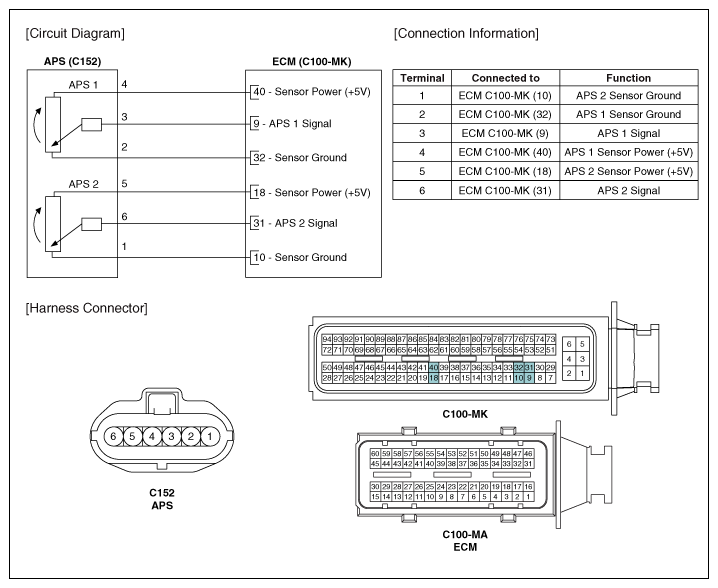

Fig 1: Accelerator Position Sensor Connectors (M/T)
G11950117Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

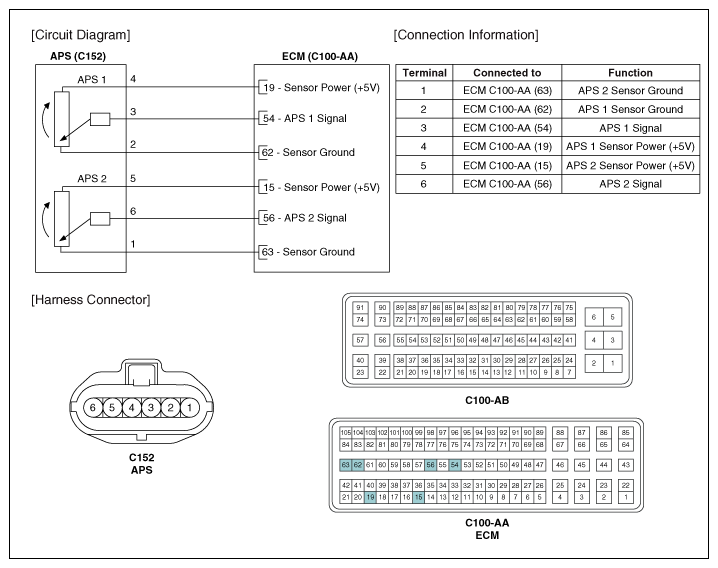

Fig 2: Accelerator Position Sensor Connectors (A/T)
G11950118Courtesy of KIA MOTORS AMERICA, INC.
