Circuit Diagram

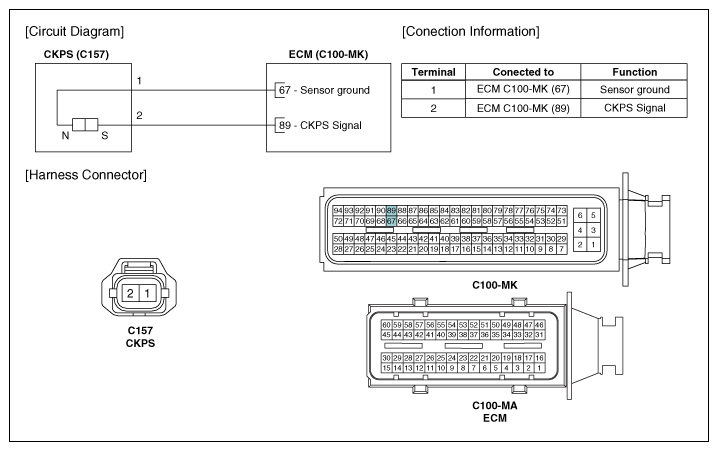

(M/T)

Fig 1: Crankshaft Position Sensor Connector (M/T)
G11950084Courtesy of KIA MOTORS AMERICA, INC.

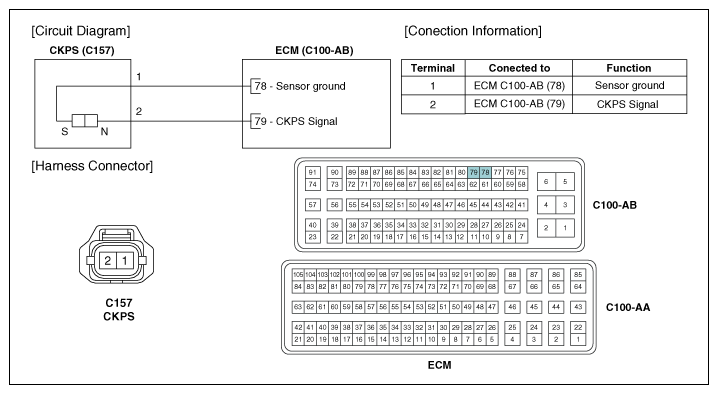

(A/T)

Fig 2: Crankshaft Position Sensor Connector (A/T)
G11950085Courtesy of KIA MOTORS AMERICA, INC.
