Circuit Diagram

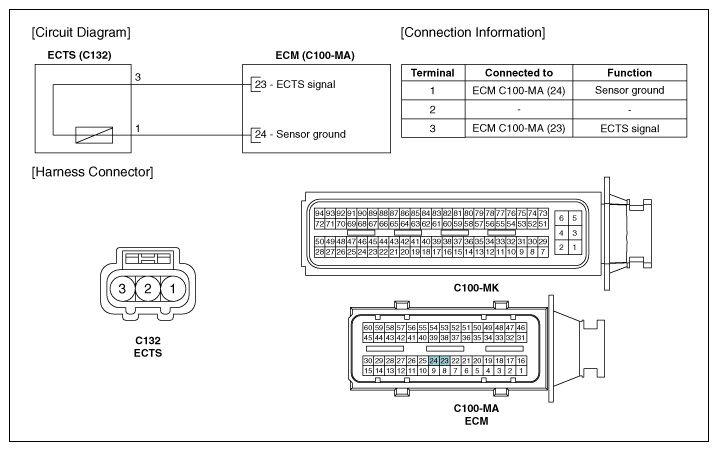

(M/T)

Fig 1: Engine Coolant Temperature Sensor Connector (M/T)
G11950076Courtesy of KIA MOTORS AMERICA, INC.

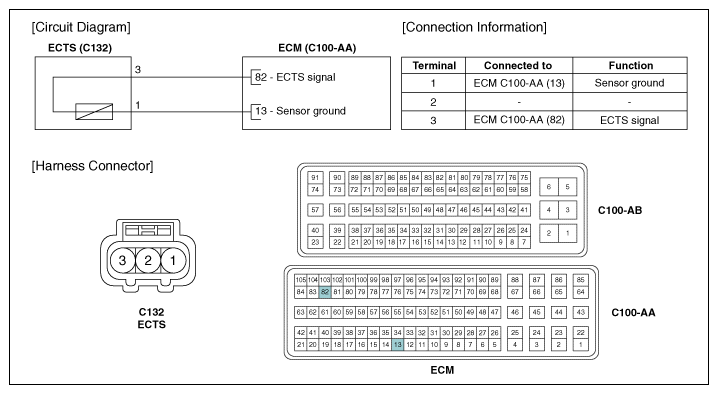

(A/T)

Fig 2: Engine Coolant Temperature Sensor Connector (A/T)
G11950077Courtesy of KIA MOTORS AMERICA, INC.
