Circuit Diagram

(M/T)

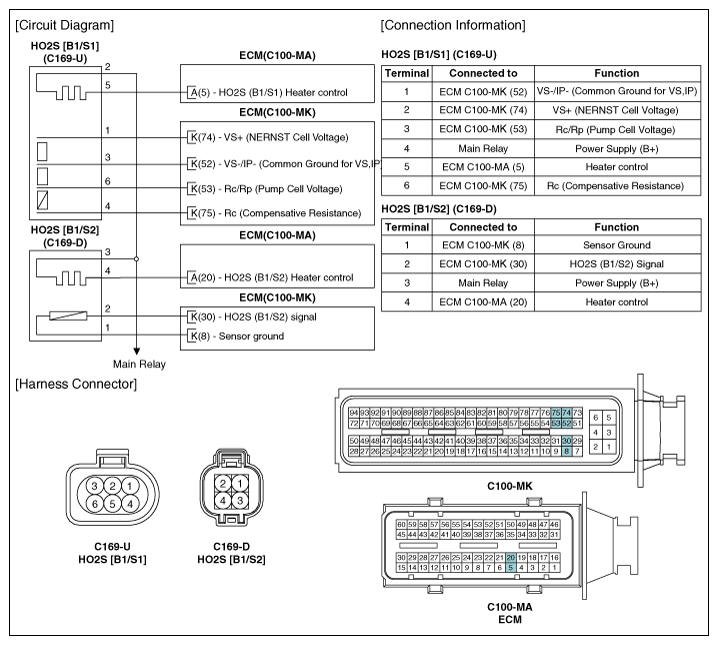

Fig 1: Heated Oxygen Sensor Connector (M/T)
G11950103Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

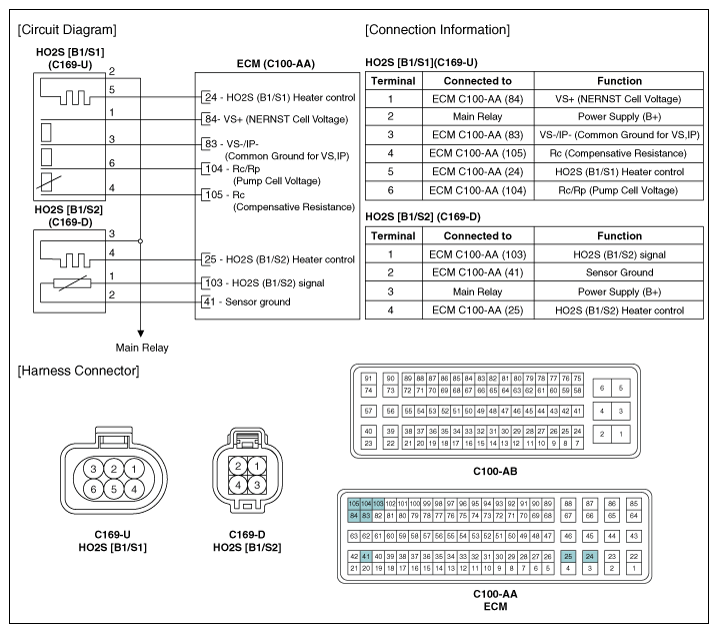

Fig 2: Heated Oxygen Sensor Connector (A/T)
G11950104Courtesy of KIA MOTORS AMERICA, INC.
