Circuit Diagram

(M/T)

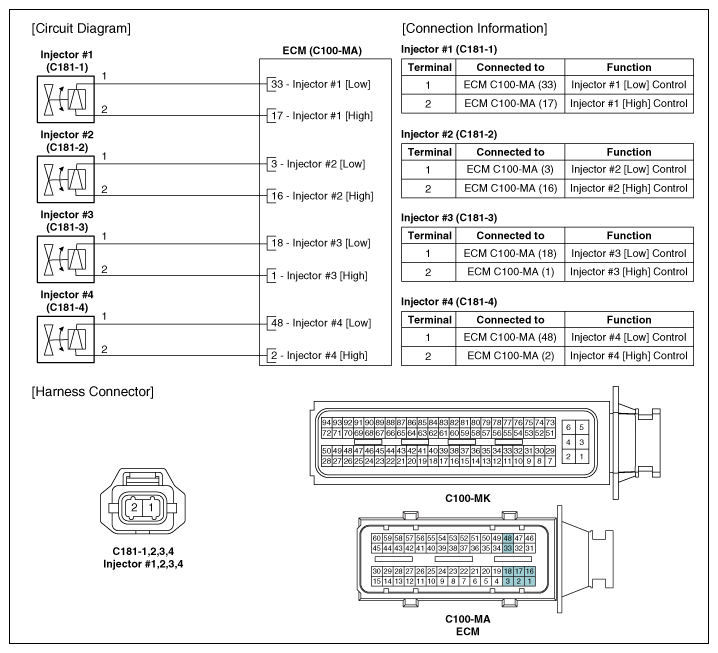

Fig 1: Injector Connector (M/T)
G11950130Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

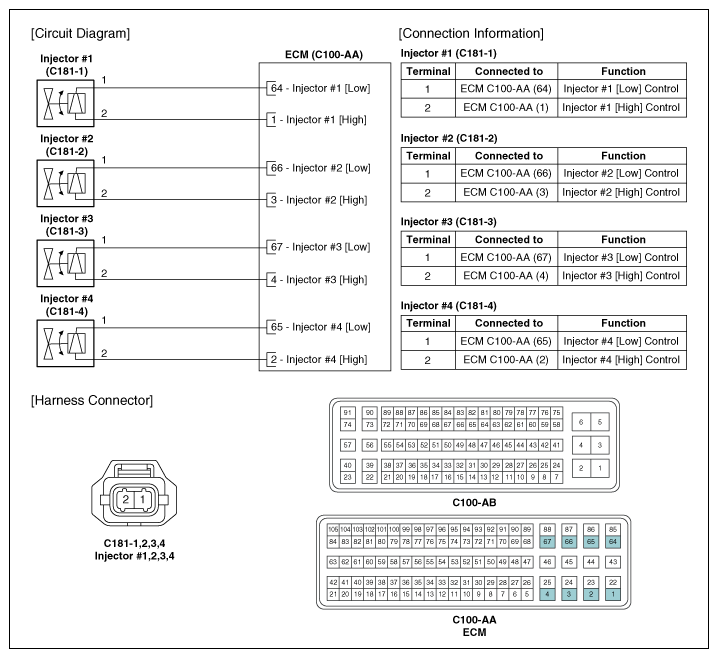

Fig 2: Injector Connector (A/T)
G11950131Courtesy of KIA MOTORS AMERICA, INC.
