Circuit Diagram

(M/T)

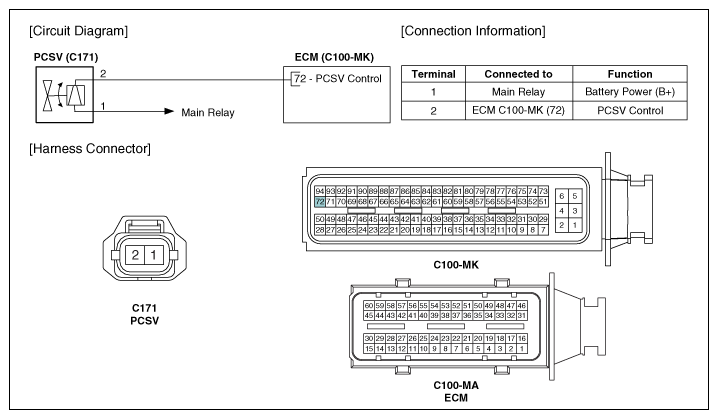

Fig 1: Purge Control Solenoid Valve Connector (M/T)
G11950143Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

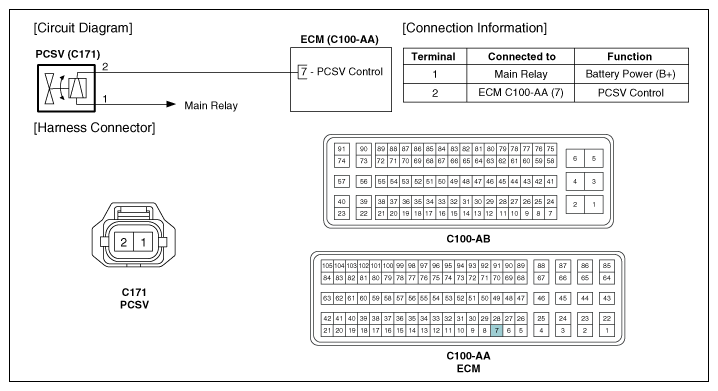

Fig 2: Purge Control Solenoid Valve Connector (A/T)
G11950144Courtesy of KIA MOTORS AMERICA, INC.
