Circuit Diagram

(M/T)

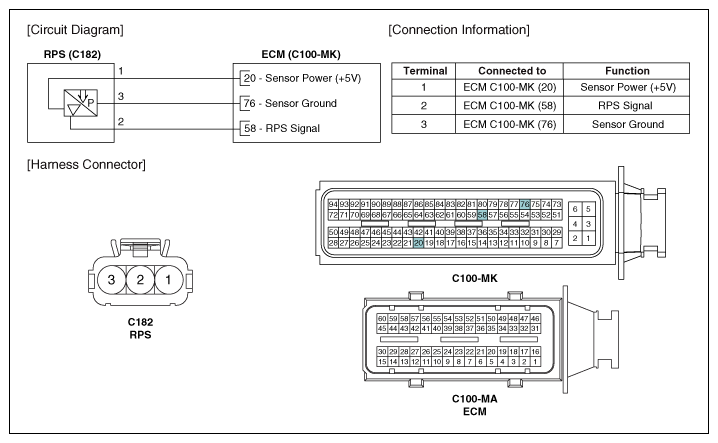

Fig 1: Rail Pressure Sensor Connector (M/T)
G11950112Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

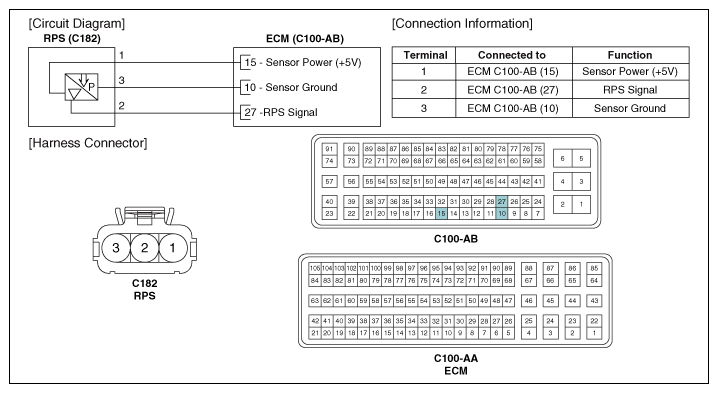

Fig 2: Rail Pressure Sensor Connector (A/T)
G11950113Courtesy of KIA MOTORS AMERICA, INC.
